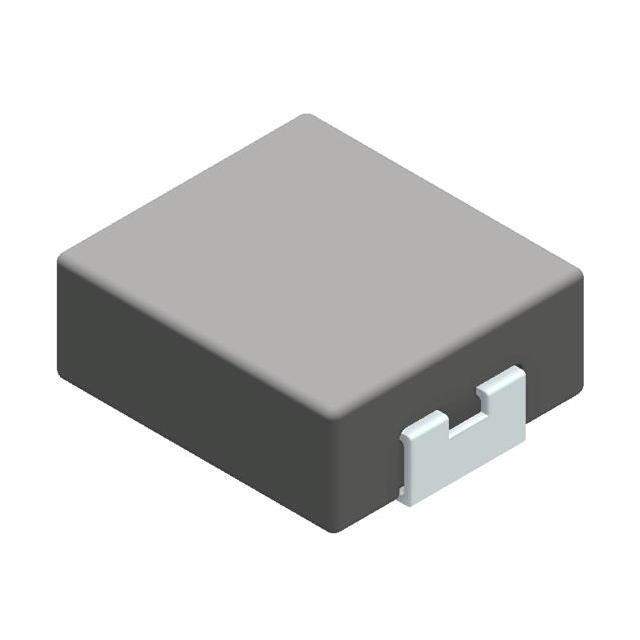

TMPC 0603H-100MG-D Real Image1 TMPC 0603H-100MG-D Real Image2
Same model may have multiple batches, images only for reference.
TMPC 0603H-100MG-D Real Image1 TMPC 0603H-100MG-D Real Image2
TMPC 0603H-100MG-D Real Image1 TMPC 0603H-100MG-D Real Image2
Same model may have multiple batches, images only for reference.

TMPC 0603H-100MG-D

Part No TMPC 0603H-100MG-D
Manufacturer TAI-TECH Advanced Electronics
Catalog Fixed Inductors
Description 10 UH SHIELDED MOLDED INDUCTOR S / 10 µH Unshielded Molded Inductor 3.5 A 85mOhm Max Nonstandard
Datasheet
TMPC 0603H-100MG-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TAI-TECH Advanced Electronics
Series TMPC0603H
Package Tape & Reel
Type Molded
Material - Core Carbonyl Powder
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 3.5 A
Current - Saturation (Isat) 6A
Shielding Unshielded
DC Resistance (DCR) 85mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Features -
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.287" L x 0.260" W (7.30mm x 6.60mm)
Height - Seated (Max) 0.118" (3.00mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
Standard Package 1,000 pcs
Win Source Part Number 1383673-TMPC 0603H-100MG-D
Ultra Librarian 3D Model Ultra Librarian TMPC 0603H-100MG-D CAD Model

Description

The TMPC0603H Fixed Inductor is a high-quality component designed for a wide range of applications.

  • Package Type: Molded
  • Shielded: Unshielded
  • Size: 0.287" L x 0.260" W
  • Height: 0.118"
  • Inductance: 10 μH
  • Tolerance: ±20%
  • DC Resistance: 85mOhm max
  • Current Rating: 3.5 A
  • Operating Temperature: -40°C to 125°C
  • Applications: Industrial and Automotive
  • Manufacturer: TAI-TECH Advanced Electronics
  • Package: Tape & Reel
