Same model may have multiple batches, images only for reference.

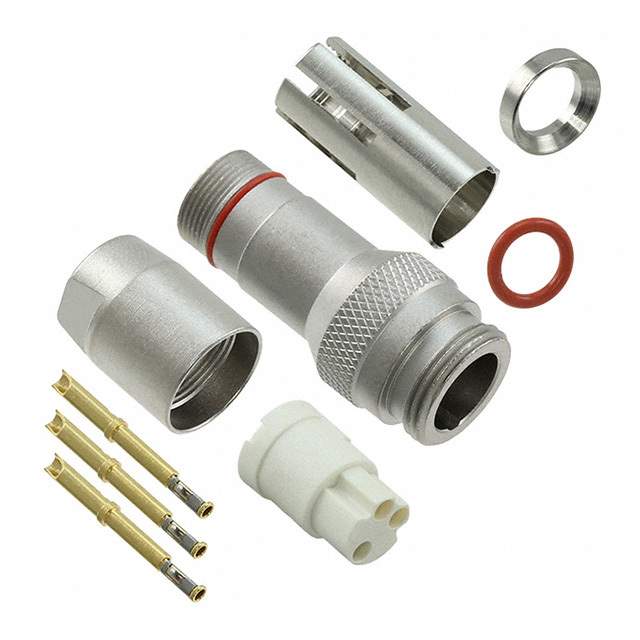

TS2L3F20C Real Image
Same model may have multiple batches, images only for reference.

TS2L3F20C

Part No TS2L3F20C
Manufacturer Switchcraft Inc.
Catalog Circular Connectors
Description CONN RCPT FMALE 3POS GOLD
Datasheet
TS2L3F20C Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Switchcraft Inc.
Packaging Bulk
Status Active
Connector Type Receptacle, Female Sockets
Number of Positions 3
Mounting Free Hanging (In-Line)
Termination Crimp or Solder Cup
Fastening Type Threaded
Orientation Keyed
Ingress Protection IP66/67/68 - Dust Tight, Water Resistant, Waterproof
Shell Material, Finish Copper Alloy, Nickel Plated, Electroless
Contact Finish Gold
Features Backshell, Shielded
Voltage Rating 125VAC/DC
Win Source Part Number 1094772-TS2L3F20C
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TS2L3F20C CAD Model

Description

The Switchcraft Inc. TS2L3F20C is a 3-position female socket receptacle connector with a backshell and shielded features.

  • Voltage Rating: 125VAC/DC
  • Ingress Protection: IP66/67/68
  • Fastening Type: threaded
  • Termination Methods: crimp or solder cup
  • Contact Finish: gold
  • Mounting: free-hanging (in-line)
  • Application: widely used in various applications
  • Popularity: popular choice
