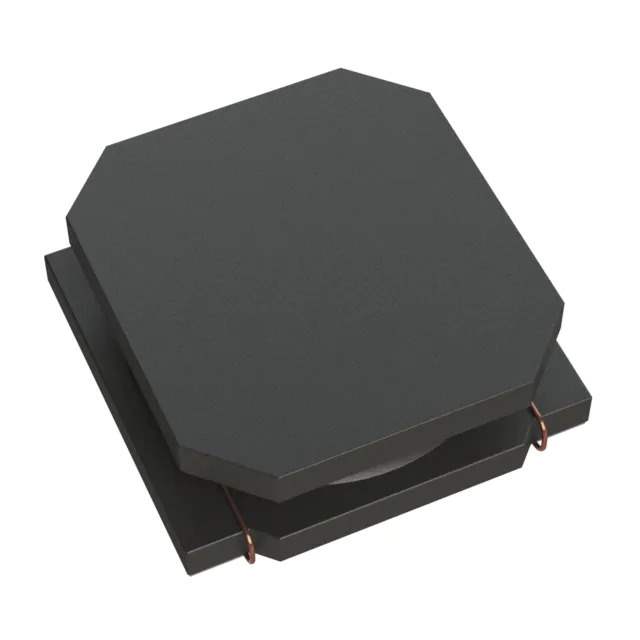

SWPA5040S330MT Real Image
Same model may have multiple batches, images only for reference.

SWPA5040S330MT

Part No SWPA5040S330MT
Manufacturer Sunlord
Catalog Fixed Inductors
Description FIXED IND 33UH 1.2A 244MOHM SMD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Sunlord
Series SWPA
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 33 µH
Tolerance ±20%
Current Rating (Amps) 1.2 A
Current - Saturation (Isat) 1.3A
Shielding Shielded
DC Resistance (DCR) 244mOhm Max
Frequency - Self Resonant 9MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) 0.157" (4.00mm)
Standard Package 1,500 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 898628-SWPA5040S330MT
Ultra Librarian 3D Model Ultra Librarian SWPA5040S330MT CAD Model

Description

The SWPA5040S330MT is a drum core wirewound inductor from Sunlord.

  • Type: Fixed inductor
  • Size: 0.197" L x 0.197" W (5.00mm x 5.00mm)
  • Height: 0.157" (4.00mm)
  • Inductance: 33 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 244mOhm maximum
  • Current Rating: 1.2A
  • Operating Temperature: -40°C to 125°C
  • Mounting: Surface mount
  • Package: Nonstandard
  • Core Material: Ferrite
