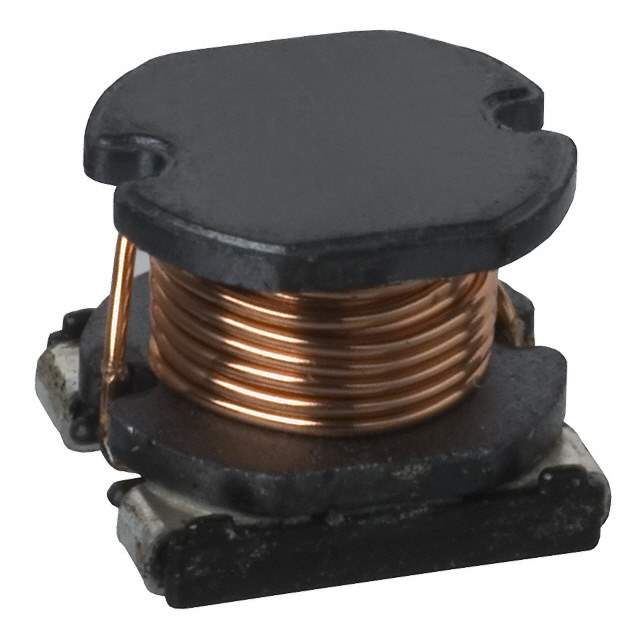

Same model may have multiple batches, images only for reference.

CR54-2R7MC

Get a Quote

Part No	CR54-2R7MC
Manufacturer	Sumida America Components Inc.
Catalog	Fixed Inductors
Description	FIXED IND 2.7UH 3.44A 26MOHM SMD / 2.7 µH Unshielded Drum Core, Wirewound Inductor 3.44 A 26mOhm Max Nonstandard
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Sumida America Components Inc.
Series	CR54
Package	Tape & Reel
Product Status	Obsolete
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	2.7 µH
Tolerance	±20%
Current Rating (Amps)	3.44 A
Shielding	Unshielded
DC Resistance (DCR)	26mOhm Max
Frequency - Self Resonant	32.9MHz
Temperature Range - Operating	-30°C ~ 100°C
Inductance Frequency - Test	7.96 MHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.228" L x 0.209" W (5.80mm x 5.30mm)
Height - Seated (Max)	0.191" (4.85mm)
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	308-1296-6,308-1296,CR542R7MC,308-1296-2,308-1296-1
Standard Package	1,500
Win Source Part Number	1051585-CR54-2R7MC
Ultra Librarian 3D Model	Ultra Librarian CR54-2R7MC CAD Model

Alternative Products

Description

Sumida America Components Inc.'s CR54-2R7MC is a fixed inductor with an inductance of 2.7 µH and a maximum DCR of 26mOhm.

Tolerance: ±20%
Temperature range: -30°C to 100°C
Designed for: use in inductors, coils, and chokes
Package: tape and reel package
Package/case: nonstandard
Height: 0.191" (4.85mm)
