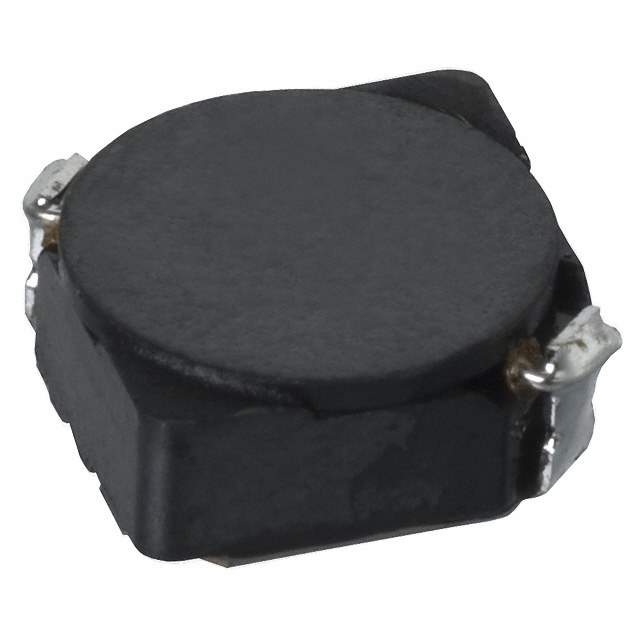

CDRH6D28-120NC Real Image
Same model may have multiple batches, images only for reference.

CDRH6D28-120NC

Part No CDRH6D28-120NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 12UH 1.55A 70 MOHM SMD / 12 µH Shielded Inductor 1.55 A 70mOhm Max Nonstandard
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Sumida America Components Inc.
Series CDRH6D28
Package Tape & Reel
Product Status Obsolete
Material - Core Ferrite
Inductance 12 µH
Tolerance ±30%
Current Rating (Amps) 1.55 A
Shielding Shielded
DC Resistance (DCR) 70mOhm Max
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.264" L x 0.264" W (6.70mm x 6.70mm)
Height - Seated (Max) 0.118" (3.00mm)
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 308-1225-6,CDRH6D28120NC,308-1225-1,308-1225-2
Standard Package 1,500
Win Source Part Number 1015413-CDRH6D28-120NC
Ultra Librarian 3D Model Ultra Librarian CDRH6D28-120NC CAD Model

Description

The Sumida America Components Inc. CDRH6D28-120NC is a 12 µH shielded inductor designed for use in various electronic applications.

  • Inductance: 12 µH
  • Current Rating (Max): 1.55 A
  • Resistance (Max): 70mOhm
  • Package: Nonstandard
  • Mounting: Surface
  • Tape and Reel: 1500
  • Operating Temperature Range: -40°C to 100°C
  • Status: Obsolete
  • RoHS: Non-compliant
