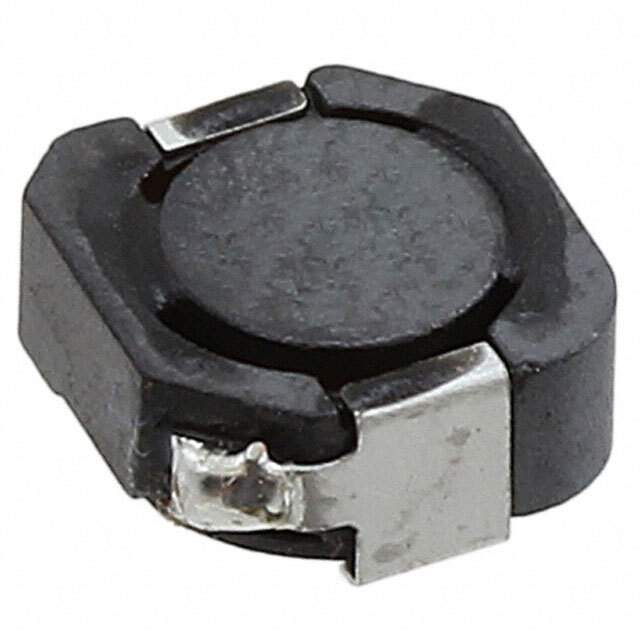

CDRH5D28RNP-470NC Real Image
Same model may have multiple batches, images only for reference.

CDRH5D28RNP-470NC

Part No CDRH5D28RNP-470NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description SMD Power Inductor
Datasheet
CDRH5D28RNP-470NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Series CDRH5D28R
Packaging Reel - TR
Material - Core Ferrite
Inductance 47μH
Tolerance ±30%
Current Rating 600mA
Shielding Shielded
DC Resistance (DCR) 229.5 mOhm Max
Operating Temperature Range -40°C ~ 100°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.236" L x 0.232" W (6.00mm x 5.90mm)
Height - Seated (Maximum) 0.118" (3.00mm)
RoHS State Request Verification
Win Source Part Number 1160876-CDRH5D28RNP-470NC
Manufacturer Homepage www.sumida.com
Popularity Medium
Supply and Demand Status Limited
Family Name CDRH5D28R
Introduction Date August 29, 2006
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian CDRH5D28RNP-470NC CAD Model

Description

The Sumida America Components Inc. This component has limited supply and demand status.

  • Manufacturer Part Number:
  • Manufacturer Homepage: www.sumida.com
  • Win Source Part Number: 1160876
  • Series: CDRH5D28R
  • Shielded: Yes
  • Package: Nonstandard
  • Inductance: 47μH
  • Current Rating: 600mA
  • Tolerance: ±30%
  • DC Resistance (DCR): 229.5 mOhm Max
  • Material-Core: Ferrite
  • Size: 0.236" L x 0.232" W (6.00mm x 5.90mm)
