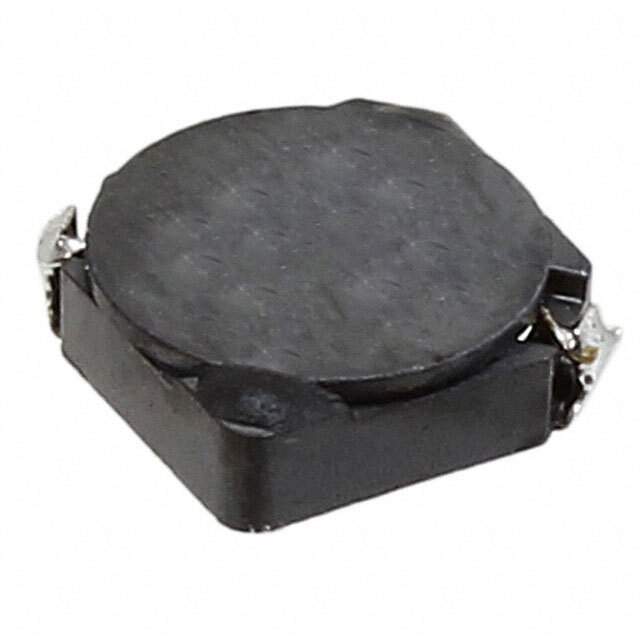

CDRH5D16NP-100 Real Image
Same model may have multiple batches, images only for reference.

CDRH5D16NP-100

Part No CDRH5D16NP-100
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 10UH 1.3A 140 MOHM SMD
Datasheet
CDRH5D16NP-100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 10μH
Tolerance ±20%
Current Rating 1.3A
Current - Saturation 1.45A
DC Resistance (DCR) 140 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.071" (1.80mm)
Win Source Part Number 202500-CDRH5D16NP-100
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CDRH5D16NP-100 CAD Model

Description

The CDRH5D16NP-100 is a robust and versatile inductor, designed to enhance the performance of various electronic devices. With its efficient energy conversion capabilities, it is a vital component for maintaining circuit integrity.

Features and Benefits

  • Highly efficient in energy transformation
  • Excellent thermal stability
  • Reduced electromagnetic interference
  • Easy to integrate into compact circuit designs

Applications

  • Switching power supplies
  • LED lighting solutions
  • Automotive electronics
  • Smart home devices

Constructed with precision, the CDRH5D16NP-100 ensures reliable operation and extended life of your electronic systems.
