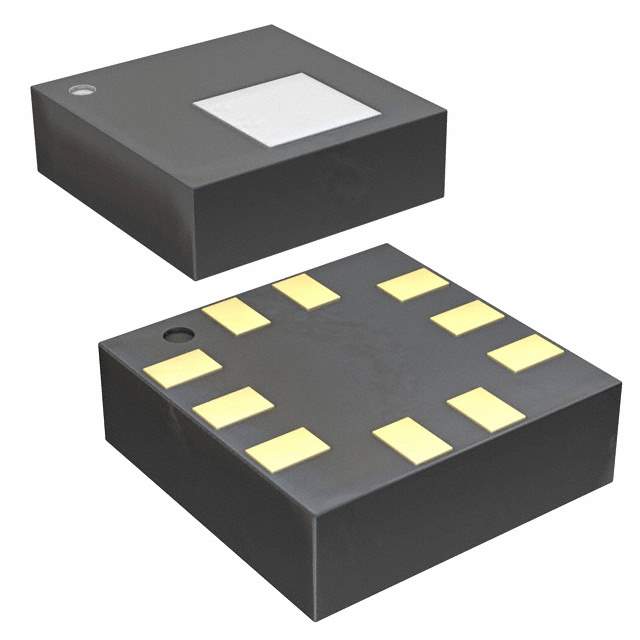

LPS22HBTR

Part No LPS22HBTR
Manufacturer STMicroelectronics
Catalog Pressure Sensors, Transducers
Description MEMS nano pressure sensor: 260-1260 hPa absolute digital output barometer
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer STMicroelectronics
Pressure Type Absolute
Operating Pressure 3.77 PSI ~ 18.27 PSI (26 kPa ~ 126 kPa)
Output Type I2C, SPI
Output 24 b
Accuracy ±0.0015 PSI (±0.01 kPa)
Operating Supply Voltage 1.7 V ~ 3.6 V
Port Style No Port
Features Temperature Compensated
Termination Style Surface Mount
Maximum Pressure 290.08 PSI (2000 kPa)
Operating Temperature Range -40°C ~ 85°C
Package 10-VFLGA
Manufacturer Package 10-LGA (2x2)
Win Source Part Number 1204244-LPS22HBTR
Manufacturer Homepage www.st.com
Family Name LPS22HB
Introduction Date October 29, 2014
ECCN EAR99
Country of Origin Malta
Halogen Free Compliant
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LPS22HBTR CAD Model

Description

LPS22HBTR from STMicroelectronics is a pressure sensor in the Pressure Sensors, Transducers category, commonly considered for compact embedded designs that need barometric or environmental pressure measurement. Engineers may evaluate this device for wearable products, mobile equipment, industrial monitoring nodes, HVAC control, altimetry-related functions, and broader IoT platforms where board space, integration, and low-power system design matter. As an STMicroelectronics offering, it fits well in designs that already use the vendor’s MEMS and sensing ecosystem. For procurement teams and design engineers, the main value lies in sourcing a recognized manufacturer part while checking current availability, documentation, and compliance status before release to production. The lifecycle status for LPS22HBTR is information not available in the provided input, so teams should verify whether it is active, NRND, or otherwise constrained through official manufacturer channels. RoHS compliance status is also information not available here and should be confirmed using the latest datasheet, declaration, or distributor compliance records.
