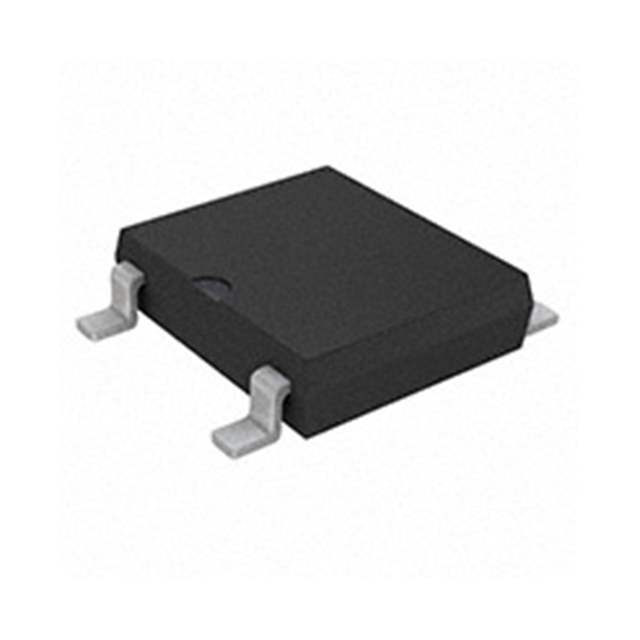

ABS6 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr SMC Diode Solutions
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600 V
Current - Average Rectified (Io) 500 mA
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 800 mA
Current - Reverse Leakage @ Vr 5 µA @ 600 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package ABS
Base Product Number ABS6
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 34718-ABS6
Ultra Librarian 3D Model Ultra Librarian ABS6 CAD Model

Description

ABS6

The ABS6 is a versatile crystal unit, offering precision and stability for a wide range of electronic applications. It features a durable, compact package suitable for portable and remote devices.

  • Features:
    • Robust construction
    • Low equivalent series resistance
    • Wide operating temperature range
  • Applications:
    • Wireless modules
    • Medical equipment
    • Alarm systems
  • Benefits:
    • Improves device reliability
    • Easy to install in various circuits

Its practicality and performance make the ABS6 an ideal choice for developers looking for dependable timing solutions.
