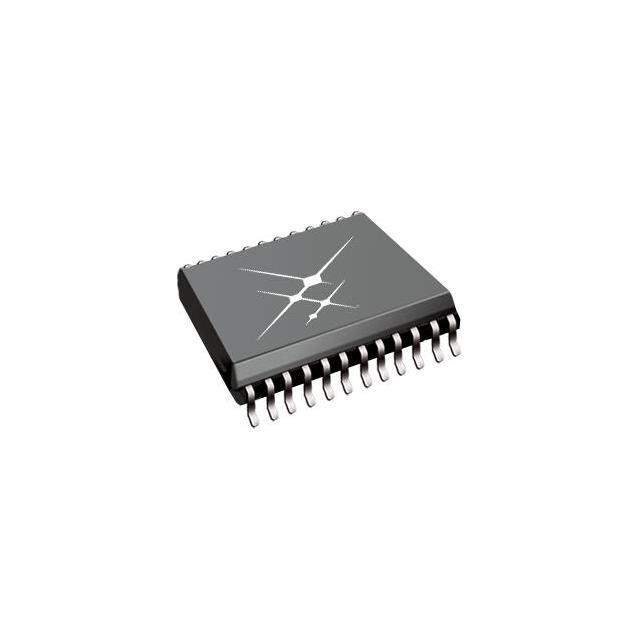

SI88642EC-IS Real Image
Same model may have multiple batches, images only for reference.

SI88642EC-IS

Part No SI88642EC-IS
Manufacturer Skyworks Solutions Inc.
Catalog Digital Isolators
Description DGTL ISO 5000VRMS 4CH GP 24SOIC / General Purpose Digital Isolator 5000Vrms 4 Channel 100Mbps 40kV/µs CMTI 24-SOIC (0.295", 7.50mm Width)
Datasheet
SI88642EC-IS Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Digital Isolators
Mfr Skyworks Solutions Inc.
Package Tube
Technology Capacitive Coupling
Type General Purpose
Isolated Power No
Number of Channels 4
Inputs - Side 1/Side 2 2/2
Channel Type Unidirectional
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 40kV/µs
Data Rate 100Mbps
Propagation Delay tpLH / tpHL (Max) 18ns, 23ns
Pulse Width Distortion (Max) 7ns
Rise / Fall Time (Typ) 2.5ns, 2.5ns
Voltage - Supply 3V ~ 5.5V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 24-SOIC (0.295", 7.50mm Width)
Supplier Device Package 24-SOIC
Base Product Number SI88642
Standard Package 46
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1244047-SI88642EC-IS
Ultra Librarian 3D Model Ultra Librarian SI88642EC-IS CAD Model

Description

The SI88642EC-IS is a digital isolator from Skyworks Solutions Inc.

  • Type: General-purpose
  • Technology: Capacitive coupling
  • Data Rate: 100Mbps
  • Channels: Four unidirectional
  • Rise/Fall Time: 2.5ns and 2.5ns respectively
  • Isolation Voltage: 5000Vrms
  • Common Mode Transient Immunity: 40kV/µs
  • Inputs on each side: Two
  • Propagation Delay tpLH/tpHL: 18ns and 23ns (Max)
  • Pulse Width Distortion: 7ns (Max)
  • Isolated Power: No
  • Voltage Supply: 3V~5.5V
  • Package: 24-SOIC
  • Operating Temperature Range: -40°C to 125°C
