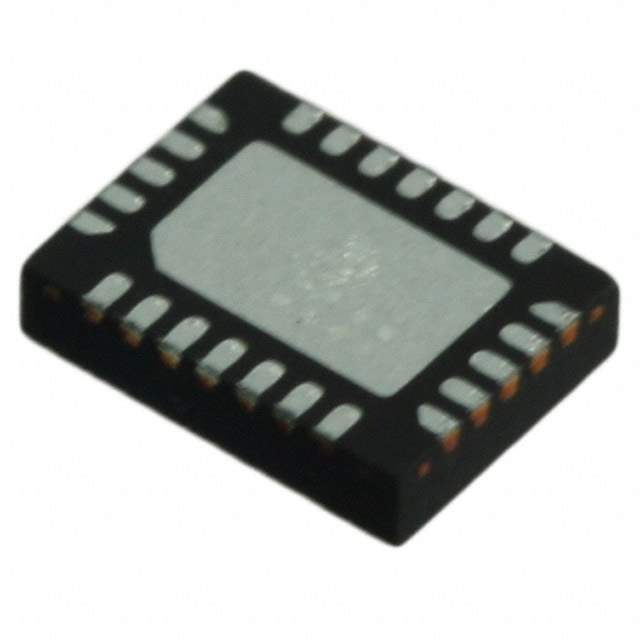

AAT1409IMK-T1 Real Image
Same model may have multiple batches, images only for reference.

AAT1409IMK-T1

Part No AAT1409IMK-T1
Manufacturer Skyworks Solutions Inc.
Catalog PMIC - LED Drivers
Description IC LED BACKLT DVR 8CH 24TQFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Skyworks Solutions Inc.
Packaging Reel
Part Status Obsolete (End Of Life)
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 8
Voltage - Supply (Min) 4.5V
Voltage - Supply (Maximum) 26V
Voltage - Output 45V
Current - Output / Channel 45mA
Frequency 675kHz, 1.3MHz
Dimming PWM
Applications Backlight
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 24-WFQFN Exposed Pad
Supplier Device Package 24-TQFN (3x4)
Manufacturer Pack Quantity 1,500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805197-AAT1409IMK-T1
Ultra Librarian 3D Model Ultra Librarian AAT1409IMK-T1 CAD Model

Description

The AAT1409IMK-T1 is a DC DC regulator that is used for backlight applications.

  • Voltage Output: 45V
  • Frequency: 675kHz, 1.3MHz
  • Package Type: 24-TQFN (3x4)
  • Manufacturer Package: 24-WFQFN Exposed Pad
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 1,500
  • Status: Obsolete (end of life)
  • Win Source Part Number: 805197
