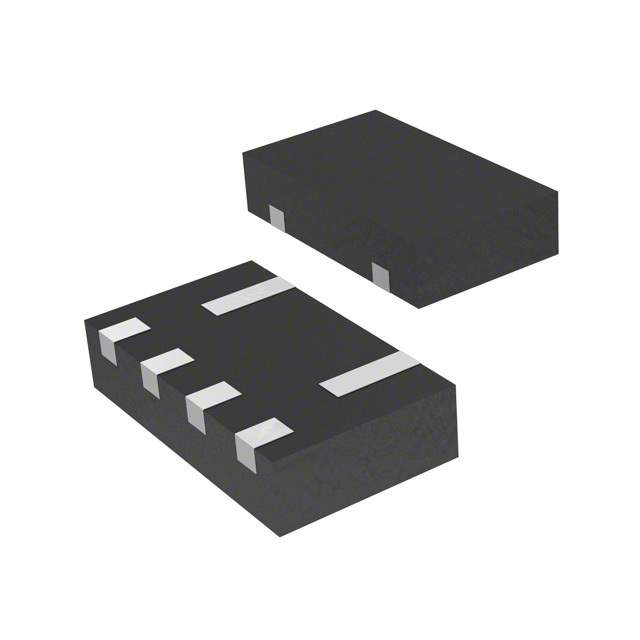

RCLAMP3624T.TCT Real Image
Same model may have multiple batches, images only for reference.

RCLAMP3624T.TCT

Part No RCLAMP3624T.TCT
Manufacturer Semtech Corporation
Catalog TVS - Diodes
Description TVS DIODE 5VWM 15VC
Datasheet
RCLAMP3624T.TCT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 3
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6.5V
Max Clamping Voltage 15V
Peak Pulse Current(Ippm) 5A (8/20μs)
Power Dissipation - Pd 100W
Power Line Protection Yes
Applications USB OTG
Capacitance @ Frequency 0.7pF @ 1MHz
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SLP1710P4T
Win Source Part Number 1091649-RCLAMP3624T.TCT
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RCLAMP3624T.TCT CAD Model

Description

The Semtech Corporation RCLAMP3624T.TCT is a steering (rail to rail) type circuit protection device.

  • Application: USB OTG
  • Feature: Power Line Protection
  • Channels: Three unidirectional
  • Capacitance: 0.7pF @ 1MHz
  • Standoff Voltage: 5V (Max)
  • Minimum Breakdown Voltage: 6.5V
  • Maximum Clamping Voltage: 15V
  • Peak Pulse Current: 5A (8/20μs)
  • Power Dissipation: 100W
  • Mounting: Surface Mount Technology (SMT)
  • Supply and Demand: Balanced
