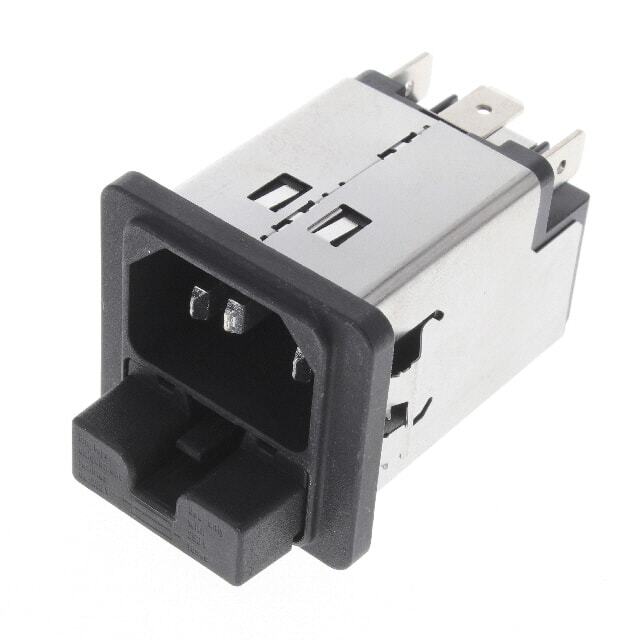

Same model may have multiple batches, images only for reference.
5220.0243.3
Same model may have multiple batches, images only for reference.

5220.0243.3

Part No 5220.0243.3
Manufacturer Schurter Inc.
Catalog AC Power Connectors
Description PWR ENT MOD RCPT IEC320-C14 PNL / Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
Datasheet
5220.0243.3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - AC Power Connectors - Power Entry Modules (PEM)
Mfr SCHURTER Inc.
Series 5220
Package Bulk
Product Status Active
Connector Style IEC 320-C14
Connector Type Receptacle, Male Blades - Module
Current Rating - Appliance Inlet 2A
Voltage Rating - Appliance Inlet 250VAC
Number of Positions 3
Filter Type Filtered (EMI, RFI) - Commercial, Medical
Current Rating - Filter 2A
Accomodates a Fuse Yes (Fuse Not Included)
Mounting Type Panel Mount, Snap-In
Termination Quick Connect - 0.250" (6.3mm)
Fuse Holder, Drawer Fuse Holder
Panel Cutout Dimensions Rectangular - 29.00mm x 32.00mm
Panel Thickness 0.031" ~ 0.118" (0.79mm ~ 3.00mm)
Material Flammability Rating UL94 V-0
Ingress Protection IP40
Approval Agency cULus, ENEC
Base Product Number 5220.0243
Standard Package 10 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
Win Source Part Number 856404-5220.0243.3
Ultra Librarian 3D Model Ultra Librarian 5220.0243.3 CAD Model

Description

The 856404-5220.0243.3 is a power entry module (PEM) connector in the AC power connectors category.

  • Package: Bulk
  • Standard Package: 10 pieces
  • Manufacturer: SCHURTER Inc.
  • Product Status: Active
  • ECCN: EAR99
  • MSL Level: Not applicable
  • Fuse: Accommodates a fuse (fuse not included)
  • REACH Status: REACH unaffected
  • HTSUS Code: 8536.30.8000
  • Current Rating: 2A
  • Voltage Rating: 250VAC
