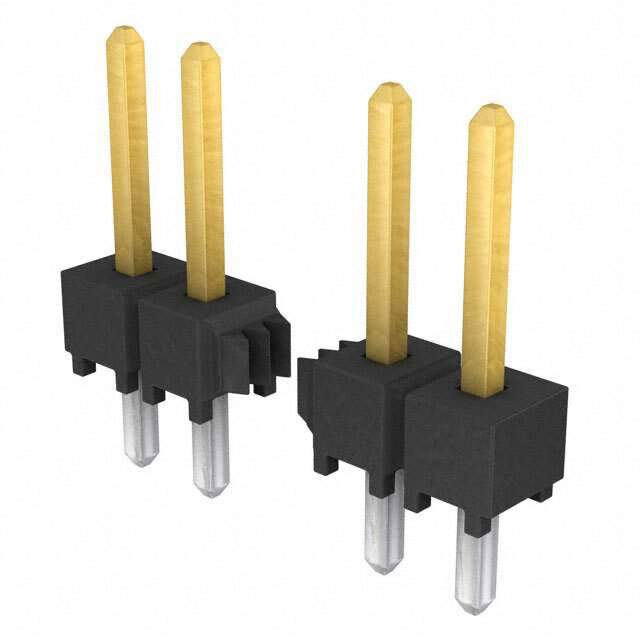

Same model may have multiple batches, images only for reference.

TSW-106-07-F-S

Name: TSW-106-07-F-S
Brand: Samtec Inc.
SKU: 937850
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TSW-106-07-F-S
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 6POS 2.54MM
Datasheet	TSW-106-07-F-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors
Estimated Pruduction Lead Time	8 Weeks
Features	Connector Header Through Hole 6 position 0.100" (2.54mm)
Manufacturer	Samtec Inc.
Series	TSW
Package	Bag
Operating Temperature Range	-55°C ~ 125°C
Mounting	Through Hole
Family Name	TSW-106
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	TSW-106-07-F-S-ND, SAM10852
Quantity per package	1
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	937850-TSW-106-07-F-S
Ultra Librarian 3D Model	Ultra Librarian TSW-106-07-F-S CAD Model

Alternative Products

Description

The TSW series connector header is a through-hole type, with 6 positions and 0.100" (2.54mm) pitch connector.

Mounting Type: Through-Hole
Positions: 6
Pitch: 0.100" (2.54mm)
Manufacturer: Samtec Inc.
Package: Bag
Operating Temperature: -55°C ~ 125°C
Family Name: TSW-106
ECCN: EAR99
Supply and Demand: Balanced
Quantity per Package: 1
MSL Level: 1 (Unlimited)
Estimated Production Lead Time: 8 weeks
REACH Status: REACH unaffected
HTSUS: 8536.69.4040
Other Part Numbers: TSW-106-07-F-S-ND, SAM10852
