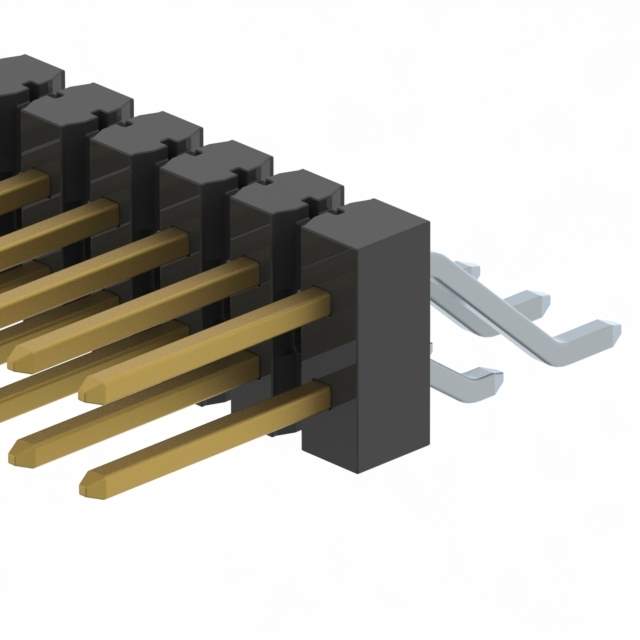

TSM-111-02-S-DH

Name: TSM-111-02-S-DH
Brand: Samtec Inc.
SKU: 1108106
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TSM-111-02-S-DH
Manufacturer	Samtec Inc.
Catalog	Circular Connectors - Housings
Description	CONN HEADER SMD R/A 22POS 2.54MM / Connector Header Surface Mount, Right Angle 22 position 0.100" (2.54mm)
Datasheet	TSM-111-02-S-DH Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	TSM
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	22
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.320" (8.13mm)
Insulation Height	0.240" (6.10mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Base Product Number	TSM-111
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	20
Win Source Part Number	1108106-TSM-111-02-S-DH
Ultra Librarian 3D Model	Ultra Librarian TSM-111-02-S-DH CAD Model

Alternative Products

Description

The TSM-111-02-S-DH is a 22 position, 2-row, surface mount right angle header connector from Samtec Inc.

Positions: 22
Rows: 2
Mounting Type: Surface Mount
Orientation: Right Angle
Style: Board-to-Board or Cable
Pitch: 0.100” (2.54mm)
Contact Shape: Square
Contact Material: Phosphor Bronze
Contact Finish Mating: Gold
Contact Finish Post: Tin
Contact Length Mating: 0.320” (8.13mm)
Insulation Height: 0.240” (6.10mm)
Operating Temperature: -55°C to 125°C
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Fastening Type: Push-Pull
Packaging: Tube
ECCN: EAR99
HTSUS: 8536.69.4040
