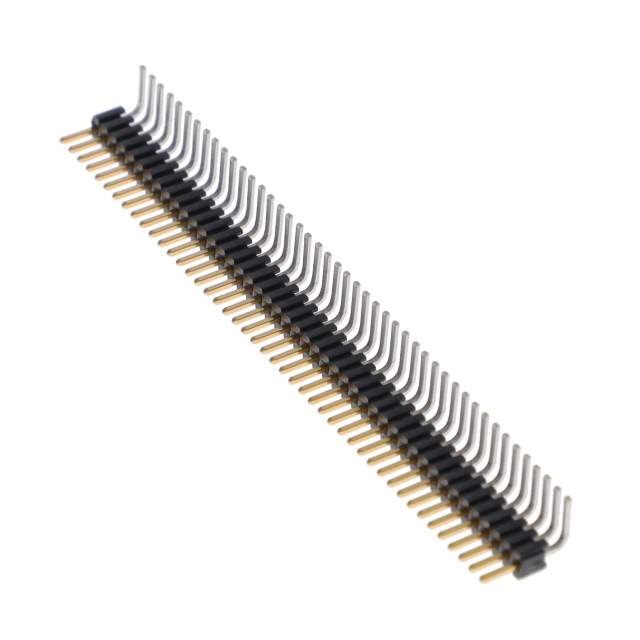

Same model may have multiple batches, images only for reference.

TMS-145-03-S-S-RA

Name: TMS-145-03-S-S-RA
Brand: Samtec Inc.
SKU: 965353
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TMS-145-03-S-S-RA
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	.050" (1.27MM) MICRO HEADER / Connector Header Through Hole, Right Angle 45 position 0.050" (1.27mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	TMS
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	45
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.125" (3.18mm)
Contact Length - Post	0.140" (3.56mm)
Insulation Height	0.098" (2.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	5A per Contact
Base Product Number	TMS-145
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	9
Win Source Part Number	965353-TMS-145-03-S-S-RA
Ultra Librarian 3D Model	Ultra Librarian TMS-145-03-S-S-RA CAD Model

Alternative Products

Description

The Samtec Inc. TMS-145-03-S-S-RA is a header connector that comes with 45 positions.

Positions: 45
Category: Rectangular connectors - headers, male pins
Pitch - Mating: 0.050" (1.27mm)
Connector Type: Header
Contact Type: Male pin
All Positions Loaded: Yes
Number of Rows: One
Termination: Solder
Fastening Type: Push-pull
Package: Tube
Mounting Type: Through-hole, right-angle
Contact Material: Phosphor bronze
Contact Finish - Mating: Gold, 30.0μin (0.76μm)
Insulation Material: Liquid crystal polymer (LCP)
Insulation Color: Black
Temperature Range: -55°C ~ 125°C
Current Rating (Amps): 5A per contact
