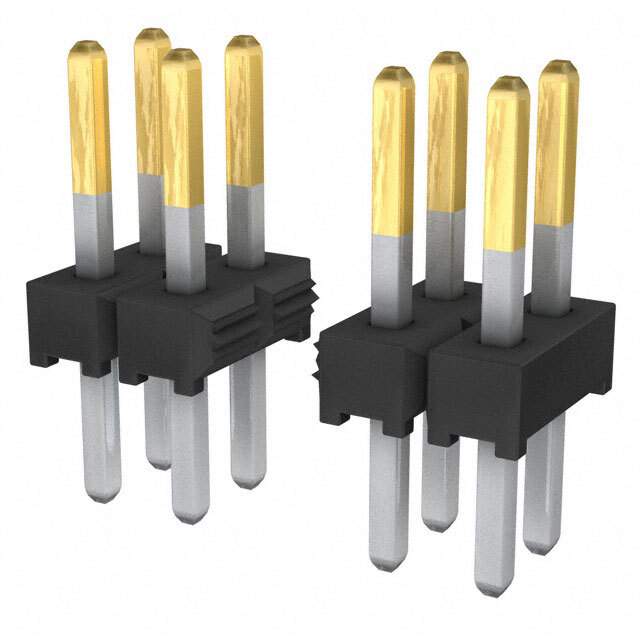

TMM-105-03-L-D Real Image
Same model may have multiple batches, images only for reference.

TMM-105-03-L-D

Part No TMM-105-03-L-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description 2MM TERMINAL STRIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Samtec Inc.
Packaging Tube/Rail
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Board or Cable
Shrouding Unshrouded
Number of Positions 10
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Through Hole
Termination Solder
Contact Length - Mating 0.157" (4.00mm)
Contact Length - Post 0.106" (2.69mm)
Overall Contact Length 0.323" (8.20mm)
Insulation Height 0.059" (1.50mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10μin (0.25μm)
Contact Finish - Post Tin
Insulation Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -55°C to 125°C
Insulation Color Black
Current Rating 3.2A per Contact
Win Source Part Number 1109997-TMM-105-03-L-D
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian TMM-105-03-L-D CAD Model

Description

The Samtec Inc. TMM-105-03-L-D is a 2-row, 10-position header connector that is designed for board-to-board or cable-to-board applications.

  • Pitch: 0.079 inches (2.00mm)
  • Current Rating: 3.2A per contact
