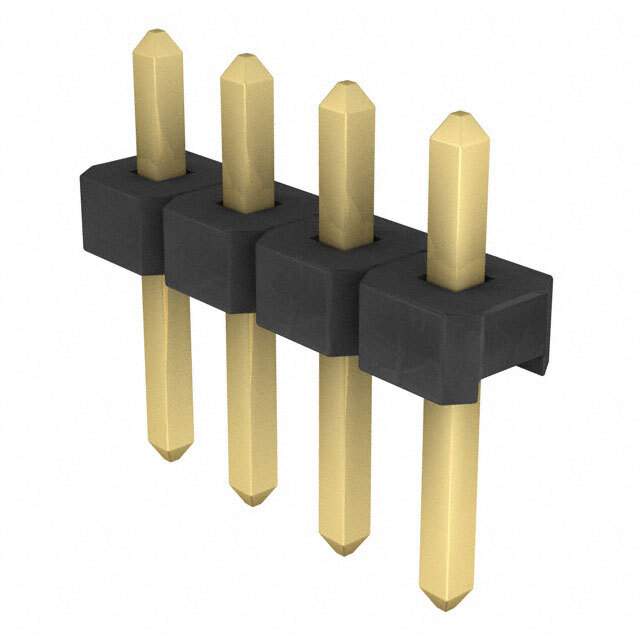

TLW-104-05-G-S

Name: TLW-104-05-G-S
Brand: Samtec Inc.
SKU: 1100214
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TLW-104-05-G-S
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 4POS 2.54MM / Connector Header Through Hole 4 position 0.100" (2.54mm)
Datasheet	TLW-104-05-G-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	Flex Stack, TLW
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.105" (2.67mm)
Contact Length - Post	0.170" (4.32mm)
Overall Contact Length	0.335" (8.51mm)
Insulation Height	0.060" (1.52mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Gold
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Insulation Color	Black
Current Rating (Amps)	5.2A per Contact
Contact Finish Thickness - Post	Flash
Base Product Number	TLW-104
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM1098-04
Standard Package	1
Win Source Part Number	1100214-TLW-104-05-G-S
Ultra Librarian 3D Model	Ultra Librarian TLW-104-05-G-S CAD Model

Alternative Products

Description

The Samtec Inc. TLW-104-05-G-S is a male pin header connector that is part of the Flex Stack TLW series.

Positions: 4
Connector Type: Header
Pin Gender: Male
Termination: Solder
Fastening Type: Push-pull
Contact Material: Phosphor Bronze
Contact Finish (Mating/Post): Gold
Pitch: 0.100" (2.54mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Voltage Rating: -
Temperature Range: -55°C ~ 125°C
Current Rating: 5.2A per contact
Packaging: Bulk
Flammability Rating: -
Insulation Height: 0.060" (1.52mm)
