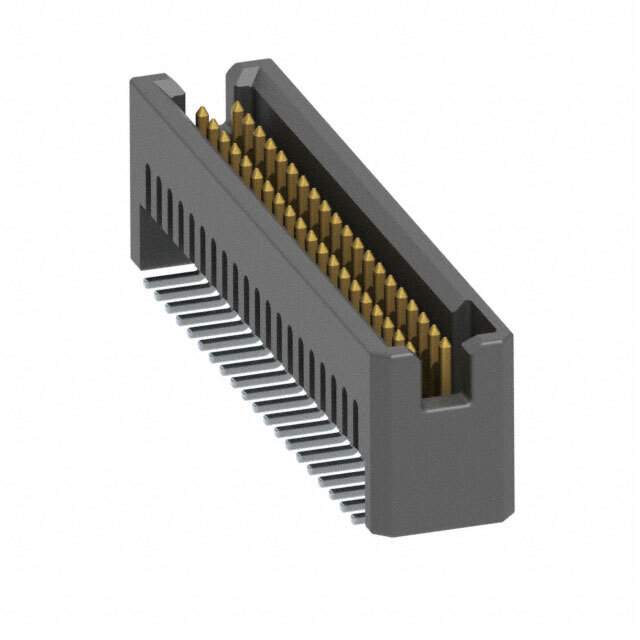

TFM-120-12-S-D

Name: TFM-120-12-S-D
Brand: Samtec Inc.
SKU: 791265
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TFM-120-12-S-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	.050 X .050 MICRO STRIPS / Conn Shrouded Header HDR 40 POS 1.27mm Solder ST Top Entry SMD Tube
Datasheet	TFM-120-12-S-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Series	Tiger Eye TFM
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting	SMD
Termination	Solder
Contact Length - Mating	0.139" (3.53mm)
Insulation Height	0.290" (7.37mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30μin (0.76μm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature Range	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating	2.9A per Contact
Voltage Rating	275VAC
Win Source Part Number	791265-TFM-120-12-S-D
Popularity	Medium
Supply and Demand Status	Limited
Family Name	TFM
Introduction Date	September 18, 2001
ECCN	EAR99
Country of Origin	China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian TFM-120-12-S-D CAD Model

Description

The Samtec Inc. Tiger Eye TFM electronic component is a medium popularity product with a limited supply and demand status.

Voltage Rating: 275VAC
Current Rating: 2.9A per contact
Win Source Part Number: 791265-TFM-120-12-S-D
Shrouding: Shrouded - 4 wall
