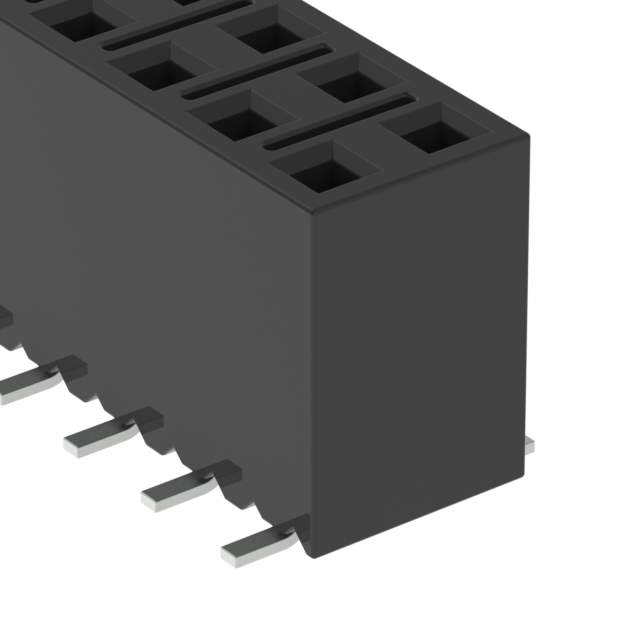

The SSM series connector is a receptacle, pass-through connector with 16 positions and 2 rows.

• Pitch: 0.1 inches (2.54mm).
• Connections: Designed for board-to-board or cable style connections.
• Material: Made of phosphor bronze.
• Contact Finish: Gold finish for mating contacts and tin finish for post contacts.
• Voltage Rating: 405VAC and 572VDC.
• Current Rating: 5.2A per contact.
• Operation Temperature: Designed for operation in a temperature range of -55°C to 125°C.
• Packaging: Tape and reel packaging with 350 units per package.
• Features: Suitable for use in a variety of applications including those that require pick and place features.
