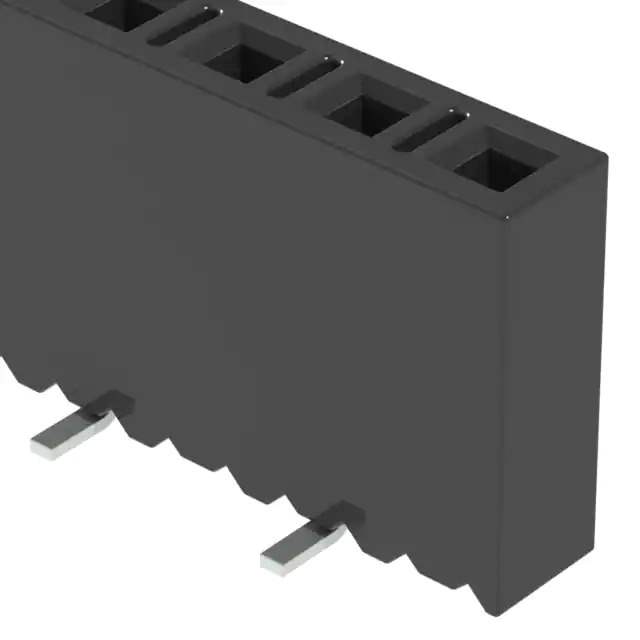

Same model may have multiple batches, images only for reference.

SSM-107-L-SV-BE-P-TR

Name: SSM-107-L-SV-BE-P-TR
Brand: Samtec Inc.
SKU: 897689
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SSM-107-L-SV-BE-P-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 7POS 0.1 GOLD SMD / 7 Position Receptacle, Bottom Entry Connector 0.100" (2.54mm) Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSM
Package	Tape & Reel
Product Status	Active
Connector Type	Receptacle, Bottom Entry
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	7
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.290" (7.37mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Features	Pick and Place
Current Rating (Amps)	5.2A per Contact
Voltage Rating	405VAC, 572VDC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SSM-107
Standard Package	300 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	897689-SSM-107-L-SV-BE-P-TR
Ultra Librarian 3D Model	Ultra Librarian SSM-107-L-SV-BE-P-TR CAD Model

Alternative Products

Description

The SSM series from Samtec Inc. offers reliable rectangular connectors for various applications.

Series: SSM series
Part Number: 897689-SSM-107-L-SV-BE-P-TR
Type: female socket receptacle connector
Positions: 7 positions
Rows: 1 row
Fastening: push-pull fastening type
Termination: terminated with solder
Mounting: surface mount mounting
Pitch: 0.100" (2.54mm)
Contact Material: phosphor bronze contact material
Voltage Rating: 405VAC and 572VDC
Status: active product
Compliance: California Prop 65 regulations
