Same model may have multiple batches, images only for reference.

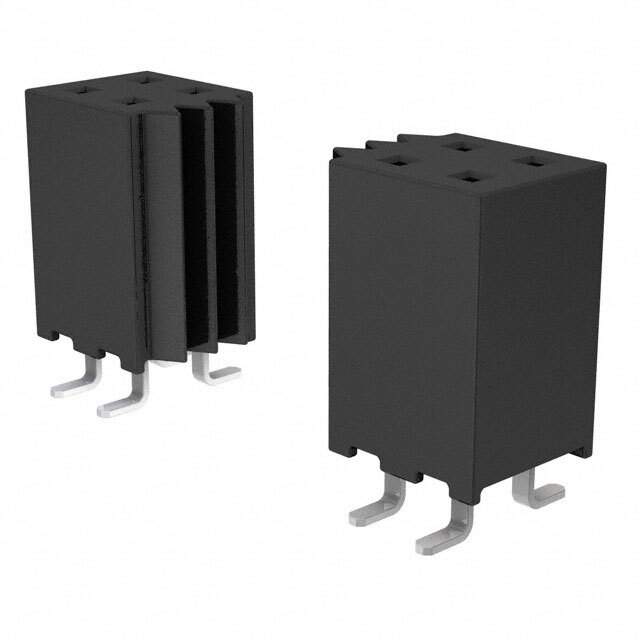

SQW-122-01-L-D-VS Real Image
Same model may have multiple batches, images only for reference.

SQW-122-01-L-D-VS

Part No SQW-122-01-L-D-VS
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 44POS 0.079 GOLD SMD / 44 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
Datasheet
SQW-122-01-L-D-VS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SQW
Package Tube
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 44
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.300" (7.62mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 3.8A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SQW-122
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM1250-22
Standard Package 1
Win Source Part Number 1193796-SQW-122-01-L-D-VS
Ultra Librarian 3D Model Ultra Librarian SQW-122-01-L-D-VS CAD Model

Description

The SQW-122-01-L-D-VS is a receptacle connector from Samtec Inc. that is specifically designed for board to board or cable applications.

  • Pitch-Mating: 0.079 inches (2.00mm)
  • Contact Shape: Square
  • Contact Finish-Mating: Gold
  • Contact Finish Thickness: 10.0µin (0.25µm)
  • Contact Finish-Post: Tin
  • Contact Type: Forked
  • Positions Loaded: 44
  • Number of Rows: Two
  • Fastening Type: Push-Pull
  • Termination: Solder
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Height: 0.300 inches (7.62mm)
  • Row Spacing-Mating: 0.079 inches (2.00mm)
  • Current Rating: 3.8A per contact
  • Package: Tube
  • Contact Material: Phosphor Bronze
  • Material Flammability Rating: UL94 V-0
  • Operating Temperature Range: -55°C to 125°C
