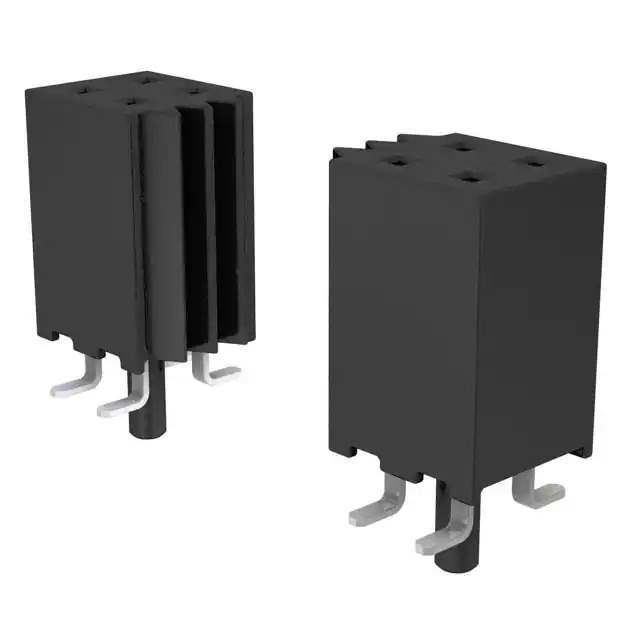

Same model may have multiple batches, images only for reference.

SQW-105-01-S-D-VS-A-K-TR

Name: SQW-105-01-S-D-VS-A-K-TR
Brand: Samtec Inc.
SKU: 897288
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SQW-105-01-S-D-VS-A-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 10POS 0.079 GOLD SMD / 10 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SQW
Package	Tape & Reel
Product Status	Active
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	10
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.300" (7.62mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Features	Board Guide, Pick and Place
Current Rating (Amps)	3.8A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SQW-105
Standard Package	375 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	897288-SQW-105-01-S-D-VS-A-K-TR
Ultra Librarian 3D Model	Ultra Librarian SQW-105-01-S-D-VS-A-K-TR CAD Model

Alternative Products

Description

The SQW series receptacle connector is a high-quality component designed for reliable and efficient connections.

Number of Positions: 10
Row Design: 2-Row
Contact Type: Forked
Termination: Solder
Contact Material: Phosphor Bronze
Temperature Range: -55°C to 125°C
Insulation Color: Black
Fastening Type: Push-Pull
Application: Board-to-Board or Cable Connection
Features: Board Guide and Pick and Place
