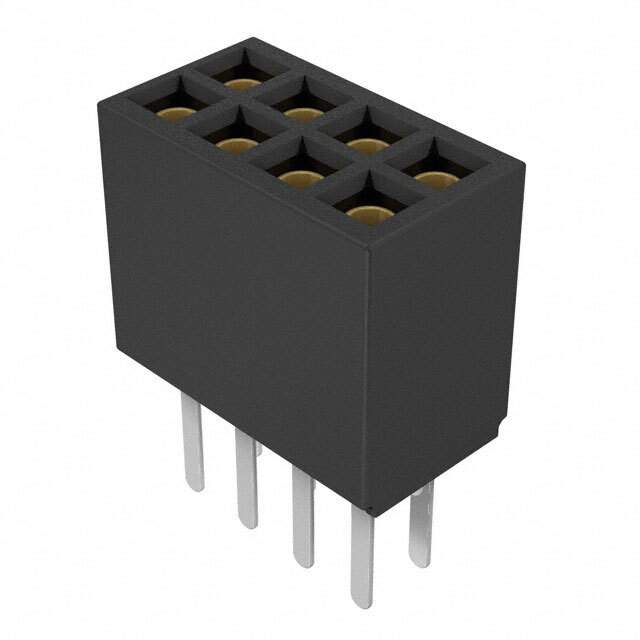

Same model may have multiple batches, images only for reference.

SFMC-104-T1-L-D-K

Get a Quote

Part No	SFMC-104-T1-L-D-K
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SFMC-104-T1-L-D-K Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SFMC
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	8
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.180" (4.57mm)
Contact Length - Post	0.120" (3.05mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Features	Pick and Place
Current Rating (Amps)	2.9A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SFMC-104
Standard Package	104
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1285511-SFMC-104-T1-L-D-K
Ultra Librarian 3D Model	Ultra Librarian SFMC-104-T1-L-D-K CAD Model

Alternative Products

Description

The Samtec Tiger Eye™ SFMC 1285511-SFMC-104-T1-L-D-K connector is a rectangular connector with 8 positions.

Connector Type: receptacle
Contact Type: female socket
Rows: 2
Contact Finish: gold
Contact Finish Thickness (Mating): 10.0µin (0.25µm)
Contact Finish (Post): tin
Feature: pick and place
Fastening Type: push-pull
Pitch: 0.050" (1.27mm)
Style: board to board or cable
Insulation Material: liquid crystal polymer (LCP)
Insulation Height: 0.180" (4.57mm)
Color: black
Mounting: through hole
Temperature Range: -55°C ~ 125°C
Current Rating: 2.9A per contact
