Name: SFM-135-L3-L-D-A
Brand: Samtec Inc.
SKU: 1287085
Availability: InStock
Rating: 4.85 (5 reviews)

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SFM
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	70
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.180" (4.57mm)
Contact Length - Post	0.075" (1.91mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	6.02mm, 6.17mm, 7.80mm, 7.95mm, 9.58mm, 9.73mm, 11.48mm, 11.63mm
Features	Board Guide
Current Rating (Amps)	3.2A per Contact
Voltage Rating	250VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Base Product Number	SFM-135
Standard Package	12
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1287085-SFM-135-L3-L-D-A
Ultra Librarian 3D Model	Ultra Librarian SFM-135-L3-L-D-A CAD Model

Description

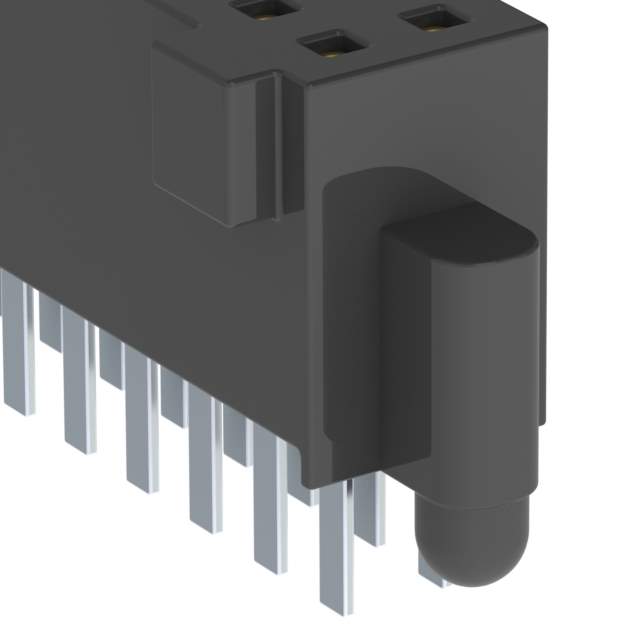

The Tiger Eye™ SFM series from Samtec Inc. is a rectangular connector that features a receptacle with a board guide.

Positions: 70
Connector Type: Receptacle
Contact Type: Female Socket
Positions Loaded: All
Rows: 2
Pitch-Mating: 0.050" (1.27mm)
Current Rating: 3.2A per contact
Contact Material: Beryllium Copper
Contact Finish - Mating: Gold
Contact Finish - Post: Tin
Voltage Rating: 250VAC
Temperature Range: -55°C to 125°C
Mounting Type: Through Hole
Height: 0.180" (4.57mm)
Application: Board-to-board or cable applications
