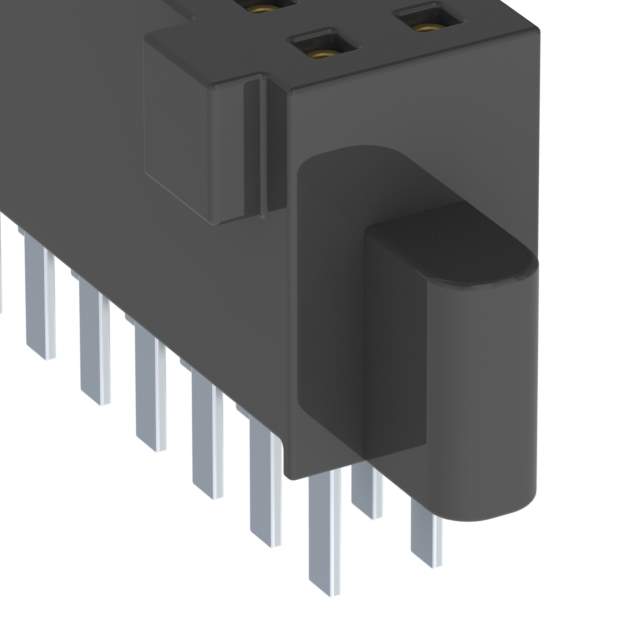

Name: SFM-125-03-S-D-EM
Brand: Samtec Inc.
SKU: 1287698
Availability: InStock

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SFM
Package	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	50
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.180" (4.57mm)
Contact Length - Post	0.075" (1.91mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	6.02mm, 6.17mm, 7.80mm, 7.95mm, 9.58mm, 9.73mm, 11.48mm, 11.63mm
Current Rating (Amps)	3.2A per Contact
Voltage Rating	250VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Base Product Number	SFM-125
Standard Package	16
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1287698-SFM-125-03-S-D-EM
Ultra Librarian 3D Model	Ultra Librarian SFM-125-03-S-D-EM CAD Model

Description

The Tiger Eye™ SFM series from Samtec Inc. offers a reliable solution for your rectangular connector needs.

Connector Type: Receptacle
Positions: 50
Rows: 2
Contact Type: Female Socket
Fastening Type: Push-Pull
Voltage Rating: 250VAC
Contact Material: Beryllium Copper
Contact Finish: Gold
Finish Thickness (Mating): 30.0μin (0.76μm)
Finish Thickness (Post): Tin
Mated Stacking Heights: 6.02mm to 11.63mm
Row Spacing: 0.050" (1.27mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Flammability Rating: UL94 V-0
Current Rating: 3.2A per contact
Temperature Range: -55°C ~ 125°C
Packaging: Bulk
