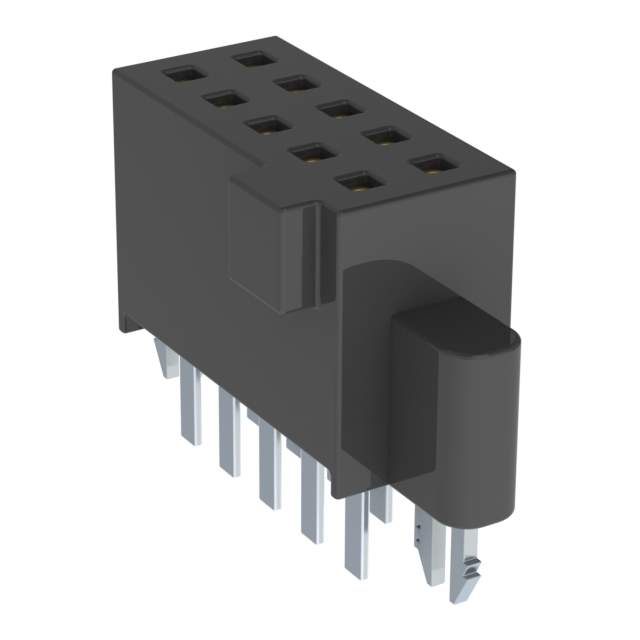

The Samtec Inc. SFM-105-03-S-D-LC-K is a rectangular connector that belongs to the Tiger Eye SFM series.

• Series: Tiger Eye SFM series
• Connector Type: Receptacle
• Features: Board lock and pick and place
• Positions: 10
• Contact Type: Female socket
• Positions Loaded: All
• Rows: 2
• Termination Type: Solder
• Fastening Type: Push-pull
• Voltage Rating: 250VAC
• Mated Stacking Heights: 6.02mm, 6.17mm, 7.80mm, 7.95mm, 9.58mm, 9.73mm, 11.48mm, and 11.63mm
• Material Flammability Rating: UL94 V-0
• Insulation Material: Liquid crystal polymer (LCP)
• Insulation Color: Black
• Mounting Type: Through-hole
• Contact Finish-Mating: Gold with a thickness of 30.0μin (0.76μm)
• Contact Finish-Post: Tin
• Contact Shape: Square
• Contact Length-Post: 0.075" (1.91mm)
• Insulation Height: 0.180" (4.57mm)
• Operating Temperature Range: -55°C to 125°C
