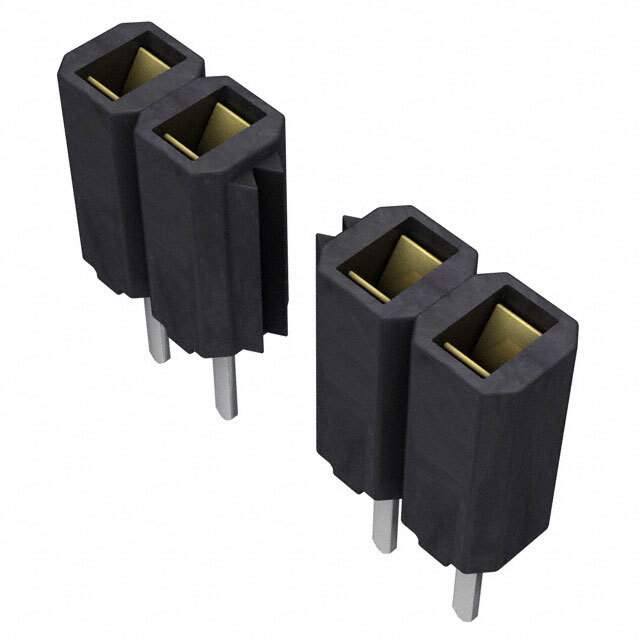

The SSA series receptacle connector is a rectangular connector that belongs to the category of connectors and interconnects.

• Series: SSA series
• Connector Type: rectangular connector, receptacle connector
• Category: connectors and interconnects
• Contact Type: female socket
• Mounting Type: through-hole
• Number of Rows: one row
• Number of Positions: 30 positions
• Insulation Material: polyethylene terephthalate (PET) and polyester
• Contact Material: phosphor bronze
• Voltage Rating: 1000V
• Contact Finish: gold
• Mating Contact Finish Thickness: 10.0µin (0.25µm)
• Material Flammability Rating: UL94 V-0
• Pitch: 0.100" (2.54mm)
• Contact Length: 0.151" (3.84mm)
• Insulation Height: 0.230" (5.85mm)
• Operating Temperature: -55°C to 125°C
