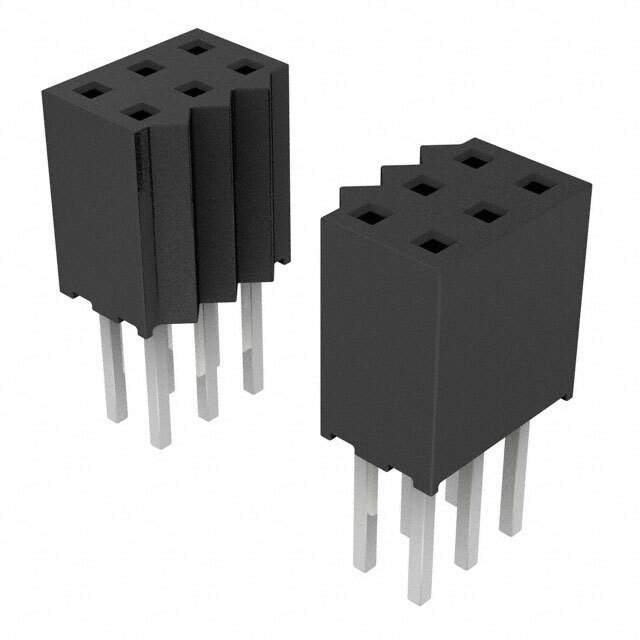

SQT-110-03-L-T Real Image
Same model may have multiple batches, images only for reference.

SQT-110-03-L-T

Part No SQT-110-03-L-T
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SQT-110-03-L-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SQT
Package Tube
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 30
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 3
Row Spacing - Mating 0.079" (2.00mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.250" (6.35mm)
Contact Length - Post 0.208" (5.28mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 5.1A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SQT-110
Standard Package 28
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1292310-SQT-110-03-L-T
Ultra Librarian 3D Model Ultra Librarian SQT-110-03-L-T CAD Model

Description

The SQT-110-03-L-T is a rectangular connector receptacle from Samtec Inc.

  • Series: SQT
  • Positions Loaded: 30 (forked contacts)
  • Applications: Board to Board or Cable
  • Pitch: 0.079 inches (2.00mm)
  • Mounting Type: Through-Hole
  • Fastening Type: Push-Pull
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold (mating), Tin (post)
  • Voltage Rating: -
  • Current Rating: 5.1A per contact
  • Temperature Range: -55°C to 125°C
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Black
  • Insulation Height: 0.250 inches (6.35mm)
  • Flammability Rating: UL94 V-0
  • ECCN: EAR99
  • Standard Package: 28 connectors
