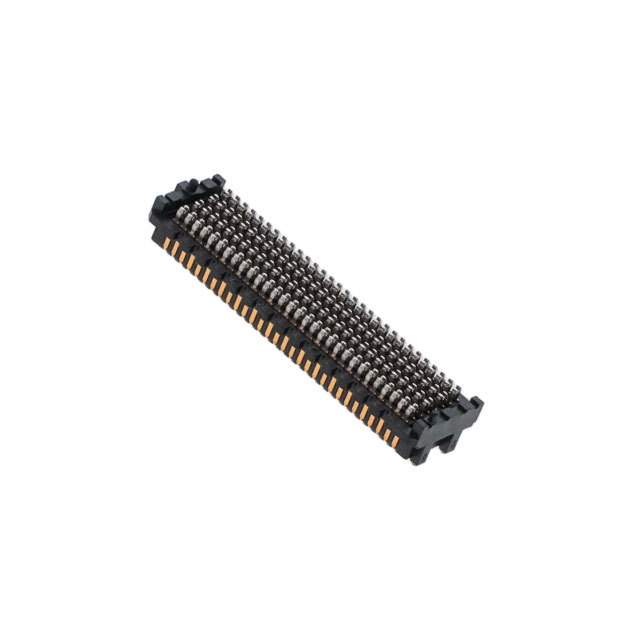

SEAM-30-03.5-S-08-2-A-K-TR

Name: SEAM-30-03.5-S-08-2-A-K-TR
Brand: Samtec Inc.
SKU: 1293479
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SEAM-30-03.5-S-08-2-A-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAM-30-03.5-S-08-2-A-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAM
Package	Tape & Reel (TR),Cut Tape (CT)
Connector Type	High Density Array, Male
Number of Positions	240
Pitch	0.050" (1.27mm)
Number of Rows	8
Mounting	SMD (SMT)
Features	Board Guide, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Mated Stacking Heights	8.5mm, 9.5mm, 10mm, 11mm
Height Above Board	0.240" (6.10mm)
Base Product Number	SEAM-30
Other Names	612-SEAM-30-03.5-S-08-2-A-K-TR,SAM14425DKR,SEAM-30-03.5-S-08-2-A-K-FR,SEAM-30-03.5-S-08-2-A-K-TR,SAM14425DKR,SAM14425CT,SAM14425DKRINACTIVE,SAM14425TR
Standard Package	200
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293479-SEAM-30-03.5-S-08-2-A-K-TR
Ultra Librarian 3D Model	Ultra Librarian SEAM-30-03.5-S-08-2-A-K-TR CAD Model

Alternative Products

Description

The Samtec SEARAY™ SEAM connector is a high-density array, male connector type with a total of 240 positions and a pitch of 0.050" (1.27mm).

Connector Type: High-density array, male
Positions: 240
Pitch: 0.050" (1.27mm)
Board Guide: Yes
Pick and Place: Yes
Contact Finish: Gold
Contact Finish Thickness: 30.0μin (0.76μm)
Terminal Block Width: 4.2mm
Package: Strip
Standard Quantity: 10
Height Above Board: 0.240" (6.10mm)
Mated Stacking Heights: 8.5mm, 9.5mm, 10mm, and 11mm
