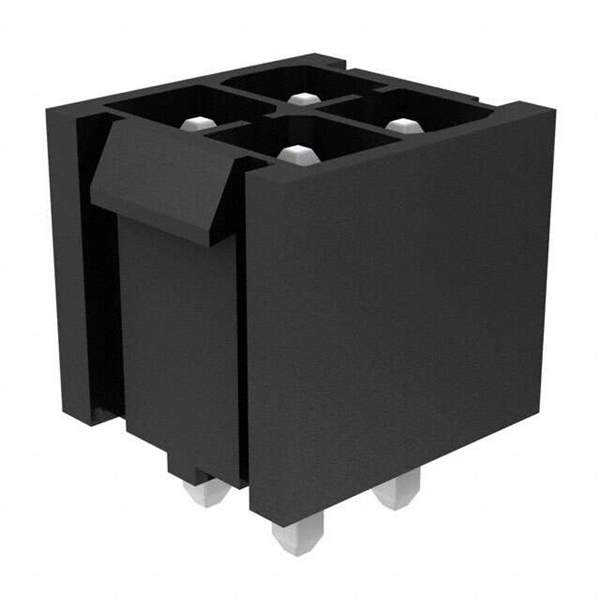

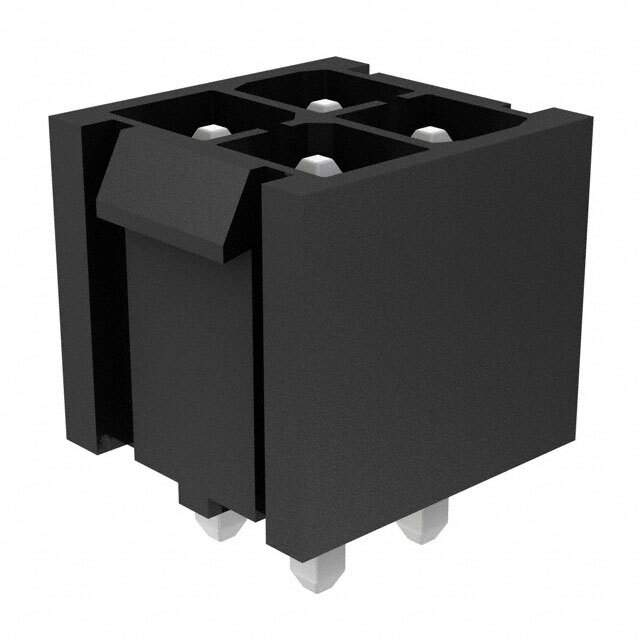

IPBT-102-H1-T-D-K Real Image
Same model may have multiple batches, images only for reference.

IPBT-102-H1-T-D-K

Part No IPBT-102-H1-T-D-K
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 4POS 4.2MM / Connector Header Through Hole 4 position 0.165" (4.20mm)
Datasheet
IPBT-102-H1-T-D-K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series Power Mate® IPBT
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.165" (4.20mm)
Number of Positions 4
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.260" (6.60mm)
Contact Length - Post 0.130" (3.30mm)
Overall Contact Length 0.510" (12.95mm)
Insulation Height 0.380" (9.65mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 400VAC, 565VDC
Base Product Number IPBT-102
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 1340659-IPBT-102-H1-T-D-K
Ultra Librarian 3D Model Ultra Librarian IPBT-102-H1-T-D-K CAD Model

Description

The Power Mate® IPBT series header is a 4-position connector with male pins. Amphenol ICC (FCI)

  • Number of Positions: 4
  • Contact Gender: Male Pins
  • Fastening Type: Locking Ramp
  • Application: Board-to-Board or Cable
  • Contact Material: Copper Alloy
  • Voltage Rating: 400VAC, 565VDC
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Material Flammability Rating: UL94 V-0
  • Mounting Type: Through Hole
  • Shrouding: Shrouded 4-Wall
  • Contact Shape: Square
  • Temperature Range: -55℃ to 105℃
  • Contact Length - Mating: 0.260" (6.60mm)
  • Contact Length - Post: 0.130" (3.30mm)
  • Overall Contact Length: 0.510" (12.95mm)
