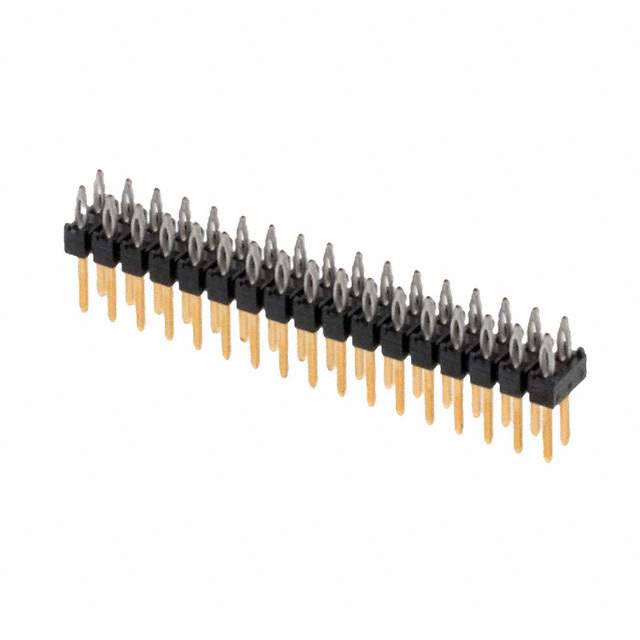

PHT-117-01-L-D

Name: PHT-117-01-L-D
Brand: Samtec Inc.
SKU: 1085832
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	PHT-117-01-L-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 34POS 2.54MM / Connector Header Through Hole 34 position 0.100" (2.54mm)
Datasheet	PHT-117-01-L-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	PHT
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	34
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Press-Fit, Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.122" (3.10mm)
Overall Contact Length	0.452" (11.48mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	4.8A per Contact
Base Product Number	PHT-117
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	PHT-117-01-L-D-ND,SAM11557
Standard Package	13
Win Source Part Number	1085832-PHT-117-01-L-D
Ultra Librarian 3D Model	Ultra Librarian PHT-117-01-L-D CAD Model

Alternative Products

Description

The 1085832-PHT-117-01-L-D is a header male pin rectangular connector from Samtec Inc. The 1085832-PHT-117-01-L-D is suitable for use in rectangular connectors and interconnects.

Positions: 34
Pitch: 0.100" (2.54mm)
Style: Board to board
Current Rating: 4.8A per contact
Temperature Range: -55°C to 125°C
Mounting: Through-hole mounted
Shrouding: Unshrouded
Contact Finish for Mating: Gold
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Finish for Post: Tin
