Same model may have multiple batches, images only for reference.

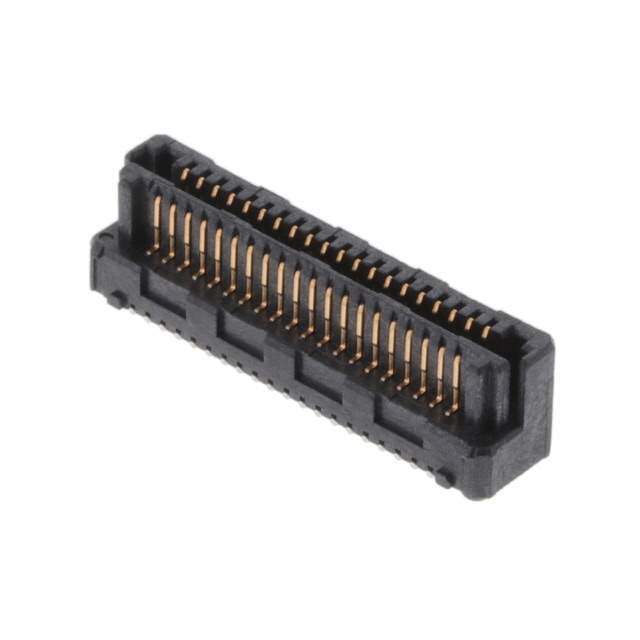

LSEM-120-04.0-L-DV-A-N-K-TR

Name: LSEM-120-04.0-L-DV-A-N-K-TR
Brand: Samtec Inc.
SKU: 1178127
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	LSEM-120-04.0-L-DV-A-N-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN SELF-MATE 40POS SMD GOLD / 40 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold
Datasheet	LSEM-120-04.0-L-DV-A-N-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	Razor Beam™ LSEM
Package	Tape & Reel
Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Number of Positions	40
Pitch	0.031" (0.80mm)
Number of Rows	2
Mounting	SMD (SMT)
Features	Pick and Place
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	7mm, 8mm, 10mm
Height Above Board	0.215" (5.46mm)
Base Product Number	LSEM-120
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM14948TR,SAM14948DKR,SAM14948CT
Standard Package	525
Win Source Part Number	1178127-LSEM-120-04.0-L-DV-A-N-K-TR
Ultra Librarian 3D Model	Ultra Librarian LSEM-120-04.0-L-DV-A-N-K-TR CAD Model

Alternative Products

Description

The LSEM-120-04.0-L-DV-A-N-K-TR is a self-mating, non-gendered, hermaphroditic connector that is designed to be used in a variety of applications, including telecommunications, data communications, and industrial equipment.

Connector Type: Self-Mating, Non-Gendered, Hermaphroditic
Pitch: 0.031" (0.80mm)
Positions: 40
Manufacturer: Samtec Inc.
Applications: Telecommunications, Data Communications, Industrial Equipment
