Same model may have multiple batches, images only for reference.

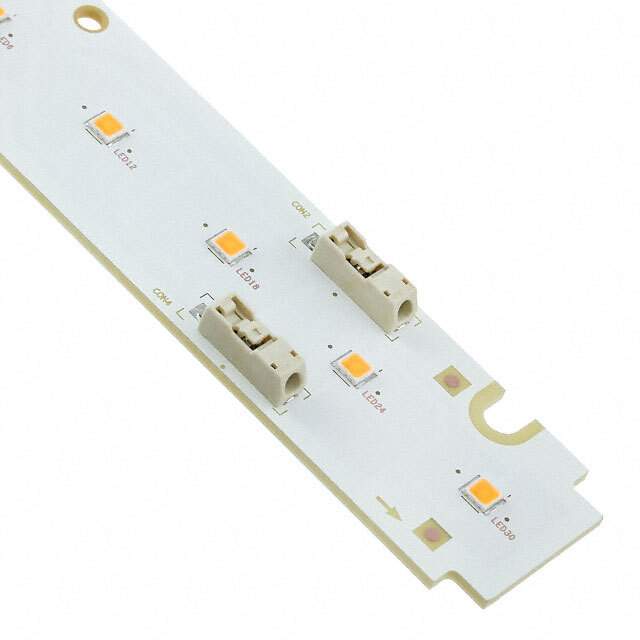

SL-B8T2N60L1WW Real Image
Same model may have multiple batches, images only for reference.

SL-B8T2N60L1WW

Part No SL-B8T2N60L1WW
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED MOD INFLUXL03 NEU WHT STRIP / LED Lighting COBs Engines Modules LED Module series White, Neutral Linear Light Strip
Datasheet
SL-B8T2N60L1WW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series inFlux_L03
Package Tray
Product Status Obsolete
Type LED Module
Color White, Neutral
CCT (K) 4000K
Configuration Linear Light Strip
Luminous Flux @ Current/Temperature 2840lm (Typ)
Current - Test 1.15A
Temperature - Test 65°C
Voltage - Forward (Vf) (Typ) 18.1V
Lumens/Watt @ Current - Test 136 lm/W
Current - Max 1.38A
CRI (Color Rendering Index) 80
Viewing Angle 115°
Features With Connector
Dimension 559.50mm L x 23.70mm W
Height 5.90mm
Lens Type Flat
Other Names 1510-1348
Standard Package 224
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241177-SL-B8T2N60L1WW
Ultra Librarian 3D Model Ultra Librarian SL-B8T2N60L1WW CAD Model

Description

The Samsung Semiconductor inFlux_L03 LED module is a high-quality lighting product that is designed for use in a wide range of applications.

  • Configuration: Linear light strip
  • Viewing Angle: 115°
  • Height: 5.90mm
  • Color Temperature: 4000K
  • CRI: 80
  • Luminous Flux: 2840lm @ a current of 1.15A and a temperature of 65°C
  • Flux: 136 lm/W @ a current of 1.15A
