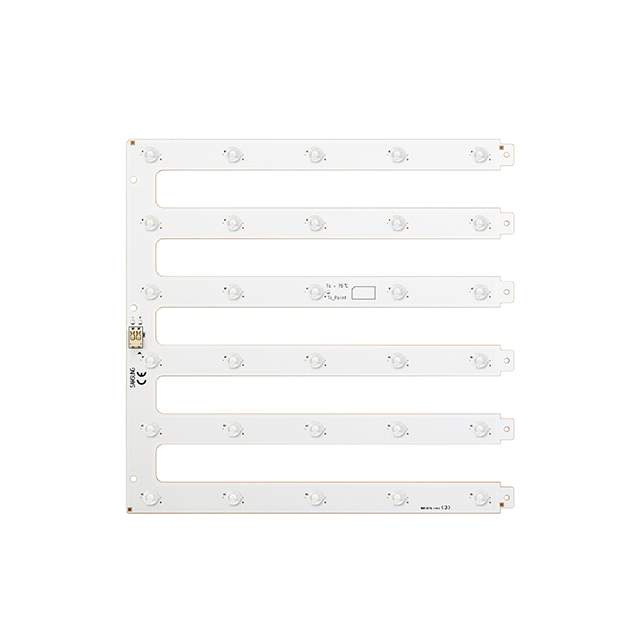

SI-B8P114250WW Real Image
Same model may have multiple batches, images only for reference.

SI-B8P114250WW

Part No SI-B8P114250WW
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED MODULE LAM-SQ30 6500K RECT / LED Lighting COBs Engines Modules LED Module series White, Cool Rectangle
Datasheet
SI-B8P114250WW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series LAM-SQ30
Package Tray
Product Status Obsolete
Type LED Module
Color White, Cool
CCT (K) 6500K
Configuration Rectangle
Luminous Flux @ Current/Temperature 1515lm (1364lm ~ 1683lm)
Current - Test 350mA
Temperature - Test 50°C
Voltage - Forward (Vf) (Typ) 30.2V
Lumens/Watt @ Current - Test 143 lm/W
Current - Max 540mA
CRI (Color Rendering Index) 80
Viewing Angle 145°
Features With Connector
Dimension 259.00mm L x 250.00mm W
Height 6.60mm
Lens Type Domed
Base Product Number SI-B8
Other Names 1510-1636
Standard Package 60
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241155-SI-B8P114250WW
Ultra Librarian 3D Model Ultra Librarian SI-B8P114250WW CAD Model

Description

The Samsung Semiconductor LAM-SQ30 LED module is a high-quality lighting solution that is perfect for a range of applications.

  • Current - Max: 540mA
  • Voltage Forward (Vf) (Typical): 30.2V (typical)
  • Viewing Angle: 145 degrees
  • CCT: 6500K
  • CRI: 80
  • Light Emitting Surface (LES): Not specified
  • Dimension: 259.00mm x 250.00mm
  • Luminous Flux: 1515lm (@ current/temperature of 1364lm ~ 1683lm)
  • Connector Type: Connector
