Same model may have multiple batches, images only for reference.

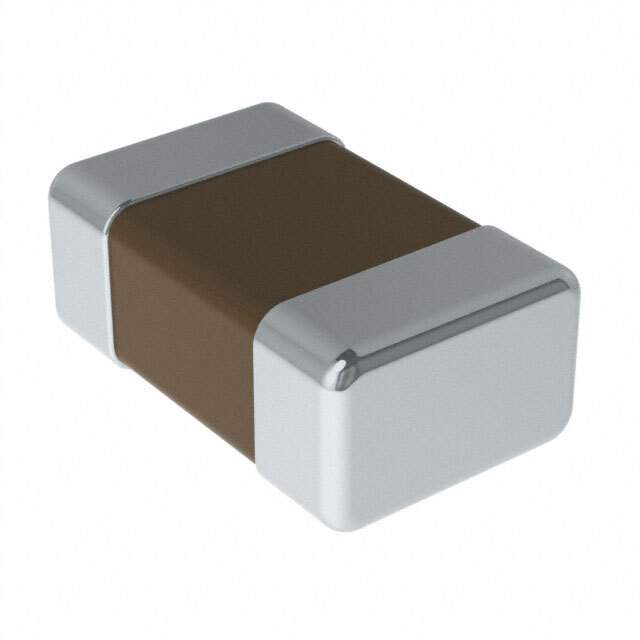

CIGT201208EHR47MNE Real Image
Same model may have multiple batches, images only for reference.

CIGT201208EHR47MNE

Part No CIGT201208EHR47MNE
Manufacturer Samsung
Catalog Fixed Inductors
Description FIXED IND 470NH 3.7A 35MOHM SMD / 470 nH Unshielded Thin Film Inductor 3.7 A 35mOhm Max 0805 (2012 Metric)
Datasheet
CIGT201208EHR47MNE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Samsung Electro-Mechanics
Series CIGT
Package Tape & Reel
Type Thin Film
Material - Core Metal Composite
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 3.7 A
Current - Saturation (Isat) 4.1A
Shielding Unshielded
DC Resistance (DCR) 35mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805 (2012 Metric)
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.031" (0.80mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 1276-6887-6,1276-6887-2,1276-6887-1
Standard Package 3,000
Win Source Part Number 1112215-CIGT201208EHR47MNE
Ultra Librarian 3D Model Ultra Librarian CIGT201208EHR47MNE CAD Model

Description

The Samsung CIGT201208EHR47MNE is a thin film inductor that falls under the category of fixed inductors.

  • Height: 0.031 inches
  • Standard Package: 3,000
  • Mounting Type: Surface Mount
  • Package/Case: 0805 (2012 Metric)
  • Core Material: Metal Composite
  • Tolerance: +/-20%
  • Manufacturer: Samsung
  • Win Source Part Number: 1112215-CIGT201208EHR47MNE
  • Usage: Cross-Reference Alternative Part
  • Capacitance Frequency Test: 1 MHz
  • Current Saturation: 4.1A
