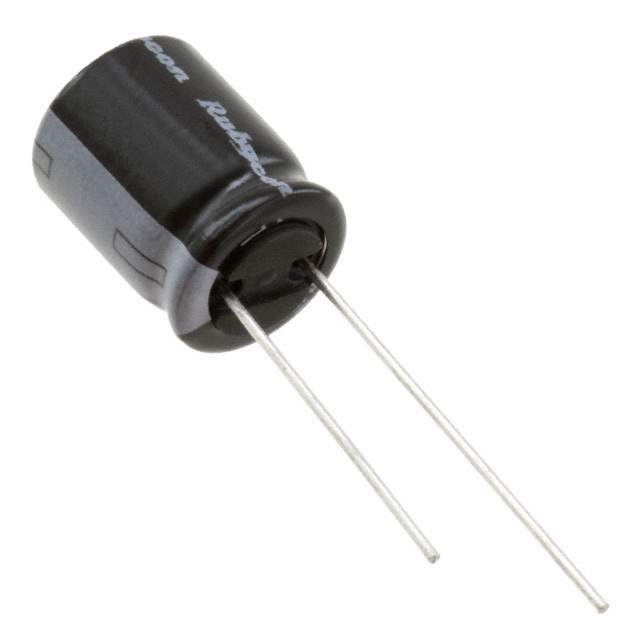

63YXF100MEFC10X12.5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXF
Package Bulk
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 63 V
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 210 mA @ 120 Hz
Ripple Current @ High Frequency 300 mA @ 100 kHz
Impedance 430 mOhms
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.551" (14.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 63YXF100MEFC10X12.5-ND,1189-4226
Standard Package 1,000
Win Source Part Number 1039650-63YXF100MEFC10X12.5
Ultra Librarian 3D Model Ultra Librarian 63YXF100MEFC10X12.5 CAD Model

Description

The YXF series aluminum electrolytic capacitor from Rubycon is a high-quality capacitor designed for general-purpose applications.

  • Capacitance: 100 µF
  • Voltage Rating: 63 V
  • Series: YXF
  • Tolerance: ±20%
  • Impedance: 430 mOhms
  • Lifetime: 7000 Hours @ 105°C
  • Polarized: Yes
  • Mounting Type: Through-Hole
  • Package/Case: Radial, Can
  • Diameter: 0.394 inches (10.00mm)
  • Height: 0.551 inches (14.00mm)
  • Packaging: Bulk
  • Standard Package: 1000
