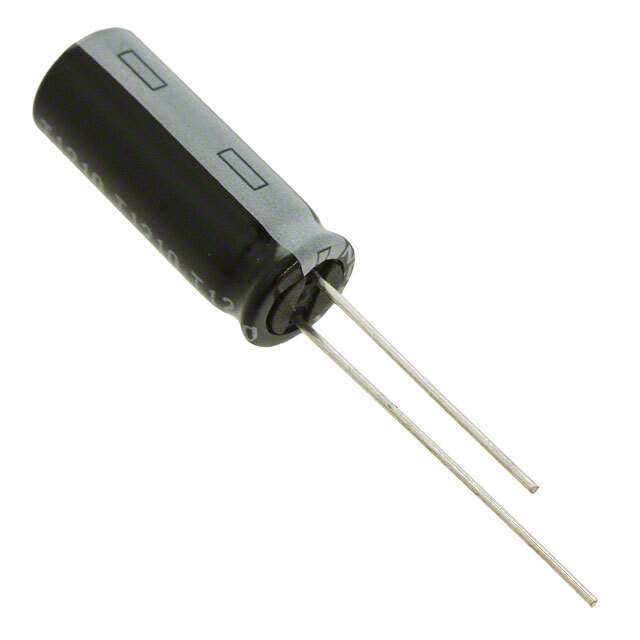

Same model may have multiple batches, images only for reference.

10ZLH1500MEFCT78X20

Name: 10ZLH1500MEFCT78X20
Brand: Rubycon
SKU: 961932
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	10ZLH1500MEFCT78X20
Manufacturer	Rubycon
Catalog	Aluminum Capacitors
Description	CAP ALUM 1500UF 20% 10V RADIAL / 1500 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Rubycon
Series	ZLH
Package	Tape & Box (TB)
Capacitance	1500 µF
Tolerance	±20%
Voltage - Rated	10 V
Lifetime @ Temp.	8000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	900 mA @ 120 Hz
Ripple Current @ High Frequency	1.5 A @ 100 kHz
Impedance	29 mOhms
Lead Spacing	0.138" (3.50mm)
Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Standard Package	1,000
Win Source Part Number	961932-10ZLH1500MEFCT78X20
Ultra Librarian 3D Model	Ultra Librarian 10ZLH1500MEFCT78X20 CAD Model

Description

The Rubycon ZLH series is a radial, can type capacitor with a capacitance of 1500μF and a voltage rating of 10V DC.

Capacitance: 1500μF
Voltage Rating: 10V DC
Tolerance: ±20%
Lead Spacing: 0.138" (3.50mm)
Impedance: 29 mOhm
Ripple Current: 900mA @ 120Hz
Polarization: Polarized
Lifespan: 8000 hours @ 105°C
Application: General Purpose
Manufactured in: Japan
Estimated EOL Date: 2027
Supply and Demand Status: Limited
