Same model may have multiple batches, images only for reference.

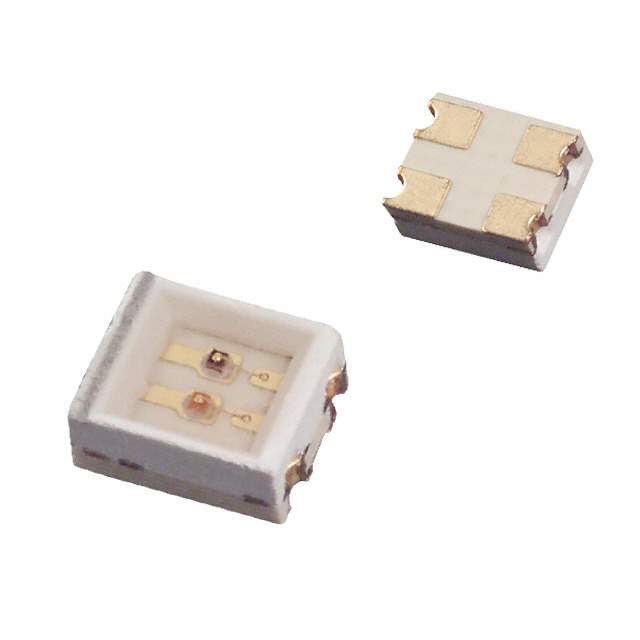

SML-020PDTT87 Real Image
Same model may have multiple batches, images only for reference.

SML-020PDTT87

Part No SML-020PDTT87
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description LED GREEN/ORG CLEAR 1208 SMD
Datasheet
SML-020PDTT87 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Not For New Designs
Color Green, Orange
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 4mcd Green, 10mcd Orange
Lens Style/Size Rectangle with Flat Top, 2.30mm x 2.10mm
Forward Voltage 2.2V Green, 2V Orange
Current - Test 20mA Green, 20mA Orange
Mounting SMD (SMT)
Wavelength - Peak 555nm Green, 610nm Orange
Case / Package 1210(3025)
Height (Max) 1.50mm
Win Source Part Number 029371-SML-020PDTT87
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SML-020PDTT87 CAD Model

Description

The Rohm Semiconductor SML-020PDTT87 is a green and orange color surface mount LED that has a rectangular shape with a flat top.

  • Colors: Green and Orange
  • Mounting: Surface mount
  • Shape: Rectangular
  • Top: Flat top
  • Lens Size: 2.30mm x 2.10mm
  • Height: 1.50mm
  • Lens Transparency: Clear
  • Millicandela Rating (Green): 4mcd
  • Millicandela Rating (Orange): 10mcd
  • Forward Voltage (Green): 2.2V
  • Forward Voltage (Orange): 2V
  • Current Test (Green): 20mA
  • Current Test (Orange): 20mA
  • Package: Reel
  • Configuration: Independent
  • Design Status: Not for new designs
  • Popularity: Medium
