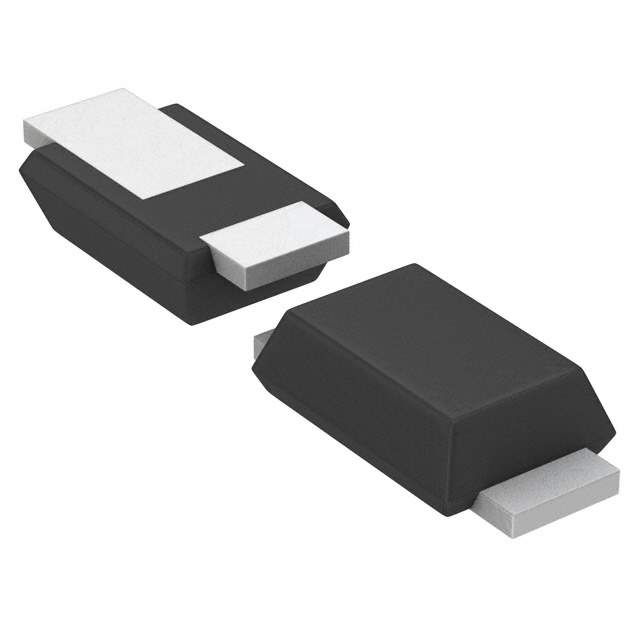

The RSX071VA-30 is a Schottky Barrier Diode from Rohm Semiconductor, designed for high-speed switching and rectification applications. Featuring a low forward voltage drop and minimal reverse recovery time, it contributes to high efficiency in power conversion circuits. The diode is available in a small surface mount package, allowing for high-density board assembly.

Applications

• High-Frequency Switching Power Supplies: Enhances efficiency and reduces switching losses.
• DC-DC Converters: Used as a rectifier in various DC-DC converter topologies.
• Reverse Polarity Protection: Protects circuits from damage due to incorrect power supply connection.
• Free-Wheeling Diode: Prevents voltage spikes in inductive load circuits.
• Solar Inverters: Improves the efficiency of solar power conversion.

Features

• Low Forward Voltage Drop (Vf): Minimizes power dissipation and improves efficiency.
• Fast Switching Speed: Enables high-frequency operation with minimal switching losses.
• Low Reverse Leakage Current (Ir): Reduces power losses in the reverse bias condition.
• Small Surface Mount Package: Facilitates compact and high-density PCB designs.
• High Surge Current Capability: Provides robustness against transient voltage spikes and surges.

Benefits

• Increased Power Conversion Efficiency: Results in lower energy consumption and reduced heat generation.
• Improved Circuit Performance: Enables faster switching speeds and higher operating frequencies.
• Enhanced System Reliability: Provides protection against voltage transients and reverse polarity issues.
• Reduced Board Space Requirements: Allows for smaller and more compact electronic devices.
• Cost-Effective Solution: Provides a balance of performance and cost-effectiveness for various applications.

Additional Details

The RSX071VA-30 has a repetitive peak reverse voltage (VRRM) of 30V and a maximum average forward current (IF(AV)) of 1A. Its low forward voltage drop is typically around 0.4V at the rated forward current. Detailed specifications, including the operating temperature range and maximum surge current, can be found in the manufacturer's datasheet.

Proper thermal management is crucial for optimizing the performance and reliability of the RSX071VA-30. The small surface mount package allows for efficient heat dissipation through proper PCB layout and heat sinking techniques.
