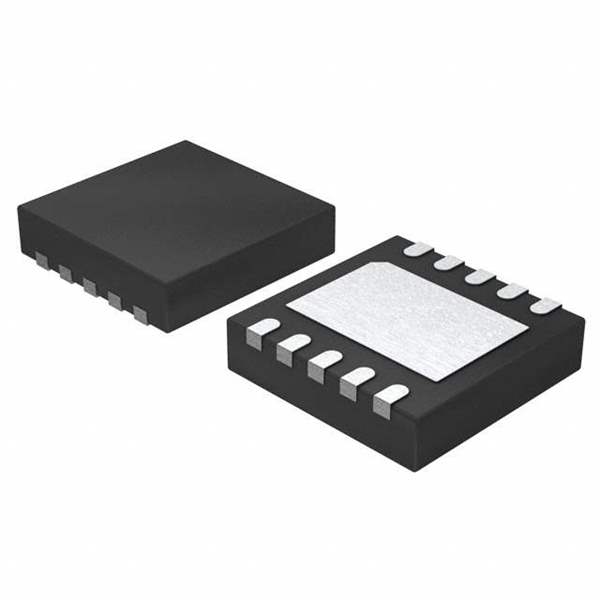

RT9709BGQWB Real Image
Same model may have multiple batches, images only for reference.

RT9709BGQWB

Part No RT9709BGQWB
Manufacturer Richtek USA Inc.
Catalog PMIC - Battery Management
Description IC BATT PROTECTION 10WDFN / Battery Battery Protection IC 10-WDFN (3x3)
Datasheet
RT9709BGQWB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Battery Management
Mfr Richtek USA Inc.
Package Bulk
Product Status Obsolete
Function Battery Protection
Fault Protection Over Current, Over Temperature, Over/Under Voltage
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 10-WFDFN Exposed Pad
Supplier Device Package 10-WDFN (3x3)
Base Product Number RT9709
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN OBSOLETE
HTSUS 0000.00.0000
Win Source Part Number 892606-RT9709BGQWB
Ultra Librarian 3D Model Ultra Librarian RT9709BGQWB CAD Model

Description

The RT9709BGQWB is a battery management IC designed for battery protection applications.

  • Protection: Over current, over temperature, and over/under voltage fault protection
  • Temperature Range: -40°C to 85°C
  • Mounting: Surface mountable
  • Package: 10-WFDFN exposed pad package
  • Manufacturer: Richtek USA Inc.
  • Status: Obsolete product
  • Category: Integrated circuits
