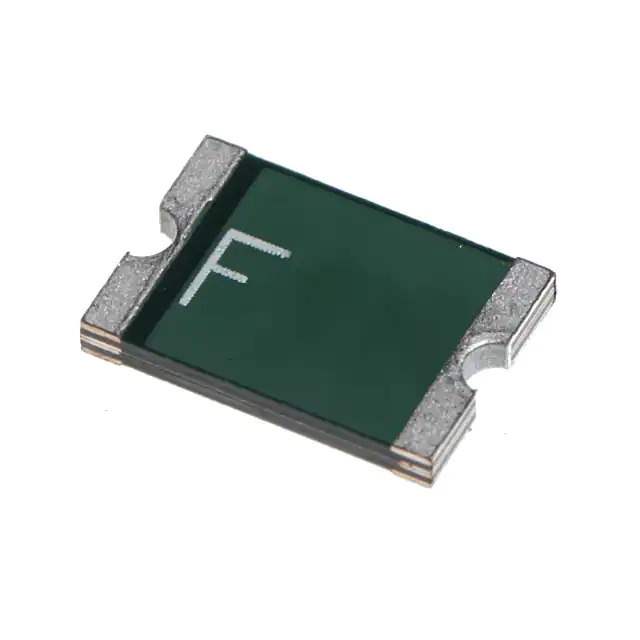

The FSMD300-24-2920R is a PTC resettable fuse from the FSMD2920 series, designed for circuit protection. It comes in a tape and reel package, with a size of 0.290" L x 0.202" W (7.36mm x 5.12mm) and a maximum thickness of 0.045" (1.15mm).

• Package: Tape and Reel
• Size: 0.290" L x 0.202" W (7.36mm x 5.12mm)
• Maximum Thickness: 0.045" (1.15mm)
• Maximum Voltage: 24V
• Maximum Current: 100A
• Hold Current (Ih): 3A
• Trip Current (It): 5.2A
• Time to Trip: 20 seconds
• Mounting: Surface Mountable
• Package: 2920 (7351 Metric)
• Design: Concave
• Operating Temperature Range: -40°C to 85°C
• Initial Resistance (Ri): 10 mOhms
• Post-Trip Resistance (R1): 48 mOhms
• Status: Active
• Approvals: cUL, TUV, and UL
• REACH: Unaffected
• Manufacturer: RFE/Fuzetec
