Same model may have multiple batches, images only for reference.

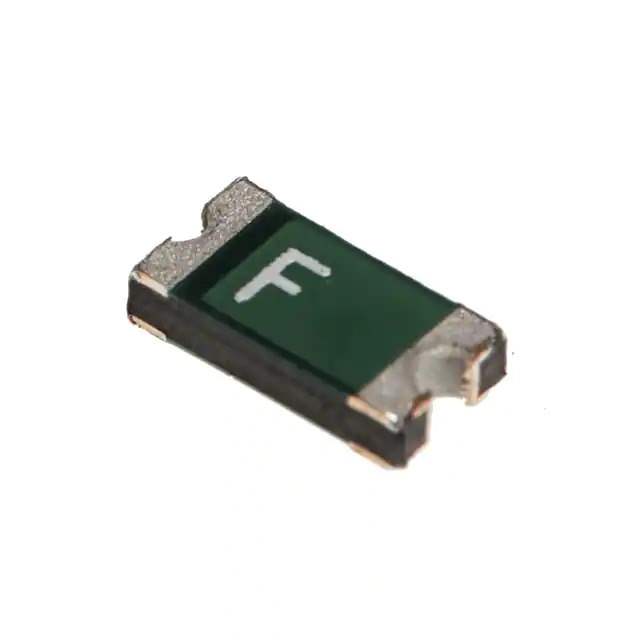

FSMD150-1206R Real Image
Same model may have multiple batches, images only for reference.

FSMD150-1206R

Part No FSMD150-1206R
Manufacturer RFE/Fuzetec
Catalog PTC Resettable Fuses
Description RESETTABLE FUSE - SMD, 1206 SIZE / PTC Resettable Fuse 8V 1.5 A Ih Surface Mount 1206 (3216 Metric), Concave
Datasheet
FSMD150-1206R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr RFE/Fuzetec
Series FSMD1206
Package Tape & Reel
Product Status Active
Voltage - Max 8V
Current - Hold (Ih) (Max) 1.5 A
Current - Trip (It) 3 A
Current - Max 100 A
Time to Trip 1 s
Resistance - Initial (Ri) (Min) 40 mOhms
Resistance - Post Trip (R1) (Max) 120 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric), Concave
Size / Dimension 0.128" L x 0.065" W (3.25mm x 1.65mm)
Thickness (Max) 0.055" (1.40mm)
Approval Agency cUL, TUV, UL
Standard Package 50 pcs
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 872328-FSMD150-1206R
Ultra Librarian 3D Model Ultra Librarian FSMD150-1206R CAD Model

Description

The FSMD1206 PTC Resettable Fuse is a compact and reliable circuit protection device suitable for a wide range of applications.

  • Manufacturer: RFE/Fuzetec
  • Maximum Voltage: 8V
  • Maximum Current: 100A
  • Temperature Range: -40°C to 85°C
