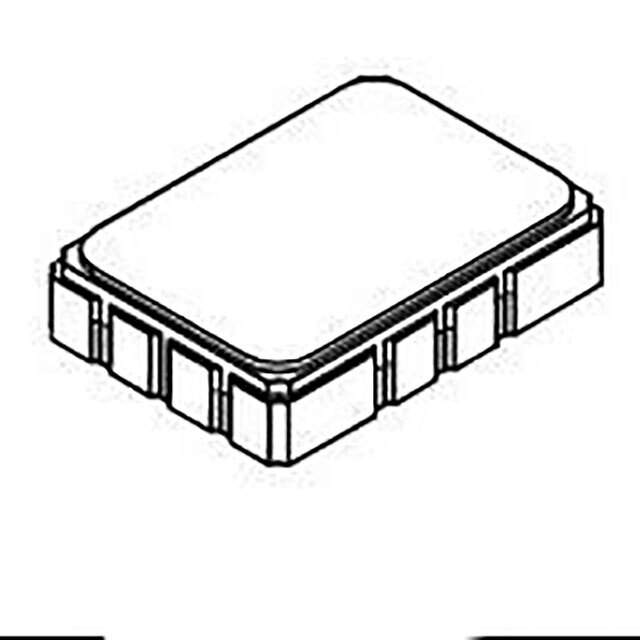

Same model may have multiple batches, images only for reference.

SF2304B

Name: SF2304B
Brand: RF Monolithics, Inc
SKU: 1275845
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SF2304B
Manufacturer	RF Monolithics, Inc
Catalog	SAW Filters
Datasheet	SF2304B Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters>SAW Filters
Mfr	RFMi
Package	Tape & Reel (TR),Tape & Reel (TR),Bag
Frequency - Center	175MHz
Bandwidth	1.04MHz, 1.38MHz, 1.46MHz, 1.66MHz, 3.21MHz, 3.47MHz
Insertion Loss	7.5dB
Ratings	AEC-Q200
Applications	General Purpose
Mounting	SMD (SMT)
Package / Case	10-SMD, No Lead
Height (Max)	0.079" (2.00mm)
Dimension	0.276" L x 0.197" W (7.00mm x 5.00mm)
Base Product Number	SF2304
Other Names	2410-SF2304B,2410-SF2304BTR2,2410-SF2304BTR
Standard Package	2,000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.60.0060
Win Source Part Number	1275845-SF2304B
Ultra Librarian 3D Model	Ultra Librarian SF2304B CAD Model

Description

The SF2304B is a SAW filter from RFMi.

Design: provide high-performance filtering for general-purpose applications
Package: 10-SMD, no lead package
Dimension: 0.276" L x 0.197" W (7.00mm x 5.00mm)
Bandwidth: 1.04MHz, 1.38MHz, 1.46MHz, 1.66MHz, 3.21MHz, and 3.47MHz
Frequency Center: 175MHz
MSL Level: 1 (unlimited shelf life)
Suitable for: use in various electronic devices and applications
