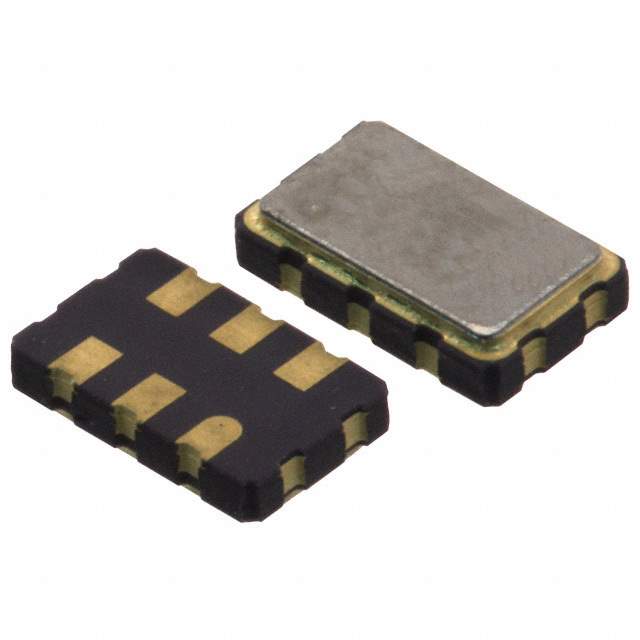

XLH526100.000000I Real Image
Same model may have multiple batches, images only for reference.

XLH526100.000000I

Part No XLH526100.000000I
Manufacturer Renesas Electronics America
Catalog Oscillators
Description XTAL OSC XO 100.0000MHZ HCMOS / 100 MHz XO (Standard) HCMOS Oscillator 2.5V Enable/Disable 6-SMD, No Lead
Datasheet
XLH526100.000000I Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Manufacturer Renesas Electronics America Inc
Packaging Strip
Base Resonator Crystal
Type XO (Standard)
Frequency 100 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 2.5V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 29mA
Mounting Surface Mount
Case / Package 6-SMD, No Lead
Size / Dimension 0.203" L x 0.132" W (5.15mm x 3.35mm)
Height - Seated (Max) 0.055" (1.40mm)
Base Product Number XLH526
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number FXOHC526R100,631-1307-2-NDL,FXO-HC526R-100-ND,631-1307,767A-100-5,631-1307-2INACTIVE,FXO-HC526R-100,631-1307-1,631-1307-2,631-1307-6INACTIVE,631-1307-6-ND,631-1307-2-ND,Q8167937,631-1307-1-ND,631-1307-6
Standard Package 1,000
Win Source Part Number 1328155-XLH526100.000000I
Ultra Librarian 3D Model Ultra Librarian XLH526100.000000I CAD Model

Description

The Renesas Electronics America Inc 1328155-XLH526100.000000I is a high-performance crystal oscillator with a frequency of 100 MHz and a frequency stability of ±25ppm.

  • Mounting Type: Surface Mount
  • Package: 6-SMD, no lead
  • Function: Enable/Disable
  • Output: HCMOS
  • Maximum Current Supply: 29mA
  • Voltage: 2.5V
  • ROHS3: Compliant
  • REACH: Unaffected
