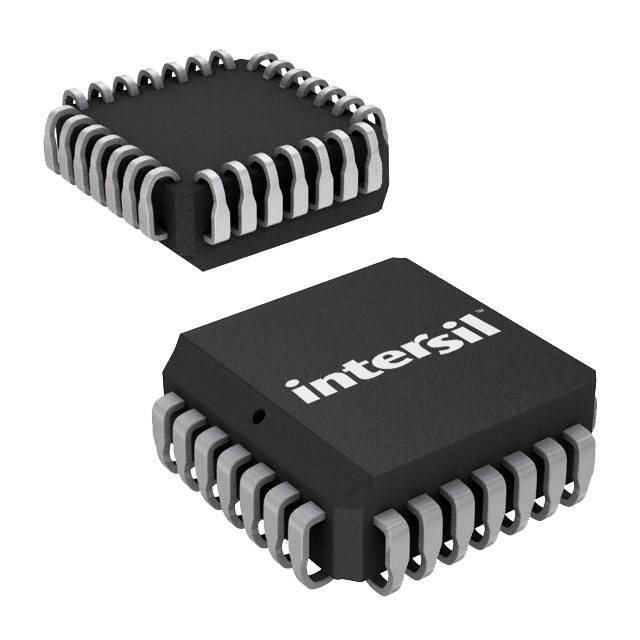

HI4P0506-5 Renesas Electronics America
Same model may have multiple batches, images only for reference.

HI4P0506-5

Part No HI4P0506-5
Manufacturer Renesas Electronics America
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description Single 16 and 8/Differential 8-Channel and 4-Channel CMOS Analog Multiplexers | IC MULTIPLEXER 16X1 28PLCC
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Renesas Electronics America Inc.
Packaging Tube
Status Obsolete
On-State Resistance (Maximum) 400Ohm
Channel-to-Channel Matching (ΔRon) 20Ohm
Supply Voltage , Dual (V±) ±15V
Switch Time (Ton, Toff) (Maximum) 250ns, 250ns
Channel Capacitance (CS(off), CD(off)) 10pF, 52pF
Current - Leakage (IS(off)) (Maximum) 30pA
Temperature Range - Operating 0°C ~ 75°C
Manufacturer Package 28-LCC
Supplier Device Package 28-PLCC (11.51x11.51)
Family Part Number HI-506
Manufacturer Pack Quantity 37
MSL Level 3 (168 Hours)
Win Source Part Number 1180485-HI4P0506-5
Manufacturer Homepage www.intersil.com/cda/home
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HI4P0506-5 CAD Model

Description

The Renesas Electronics America Inc. HI-506 is an obsolete integrated circuit that features a 28-PLCC (11.51x11.51) package.

  • Maximum On-State Resistance: 400Ohm
  • Maximum Switch Time: 250ns
  • Channel Capacitance (CS(off), CD(off)): 10pF and 52pF respectively
  • Channel-to-Channel Matching (ΔRon): 20Ohm
  • Operating Temperature Range: 0°C to 75°C
  • Current Leakage (IS(off)): 30pA
  • Manufacturer Pack Quantity: 37
  • Alternative Parts: ADG406BPZ, HI4P0506-5Z, and DG406DN
  • Supply and demand status: balance
