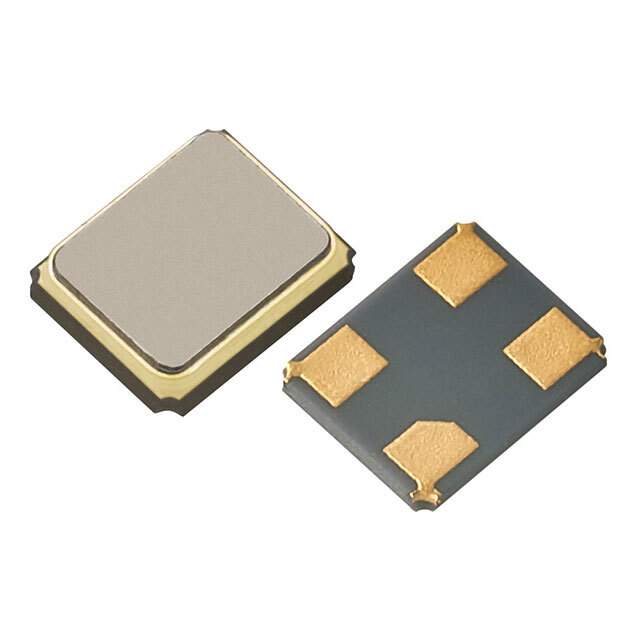

R2016-25.000-12-F-3030-EXT-TR Real Image
Same model may have multiple batches, images only for reference.

R2016-25.000-12-F-3030-EXT-TR

Part No R2016-25.000-12-F-3030-EXT-TR
Manufacturer Raltron Electronics Corporation
Catalog Crystals
Description CRYSTAL 25.0000MHZ 12PF SMD / 25 MHz ±30ppm Crystal 12pF 120 Ohms 4-SMD, No Lead
Datasheet
R2016-25.000-12-F-3030-EXT-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Raltron Electronics
Series R2016
Package Tape & Reel
Type MHz Crystal
Frequency 25 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 12pF
ESR (Equivalent Series Resistance) 120 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.020" (0.50mm)
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 1352007-R2016-25.000-12-F-3030-EXT-TR
Ultra Librarian 3D Model Ultra Librarian R2016-25.000-12-F-3030-EXT-TR CAD Model

Description

The R2016-25.000-12-F-3030-EXT-TR is an electronic component used in various electronic applications.

  • Type: Crystal Oscillator
  • Frequency: 25 MHz
  • Frequency Tolerance: ±30ppm
  • Standard Package: 3,000
  • Mounting Type: Surface Mount
  • Manufacturer: Raltron Electronics
