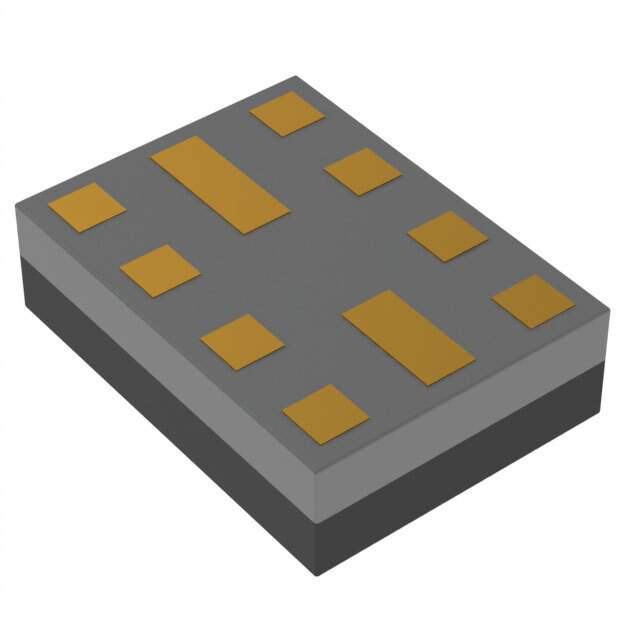

Same model may have multiple batches, images only for reference.

B39461B5011H810

Name: B39461B5011H810
Brand: Qualcomm
SKU: 436212
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	B39461B5011H810
Manufacturer	Qualcomm
Catalog	SAW Filters
Description	FILTER SAW IF 456.0MHZ WIMAX SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Filters
Manufacturer	Qualcomm (RF360 - A Qualcomm & TDK Joint Venture)
Packaging	Reel - TR
Status	Obsolete(EOL)
Frequency - Center	456MHz
Bandwidth	3.7MHz
Insertion Loss	8.5dB
Applications	WiMax
Mounting	SMD (SMT)
Height (Max)	0.052" (1.33mm)
Dimension	0.276" L x 0.197" W (7.00mm x 5.00mm)
Win Source Part Number	1021545-B39461B5011H810
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian B39461B5011H810 CAD Model

Description

The Qualcomm RF360 is a SMD (SMT) filter designed for WiMax applications.

Insertion Loss: 8.5dB
Bandwidth: 3.7MHz
Frequency Center: 456MHz
Dimensions: 0.276" L x 0.197" W (7.00mm x 5.00mm)
Maximum Height: 0.052" (1.33mm)
Status: Obsolete (EOL)
Popularity: Medium
