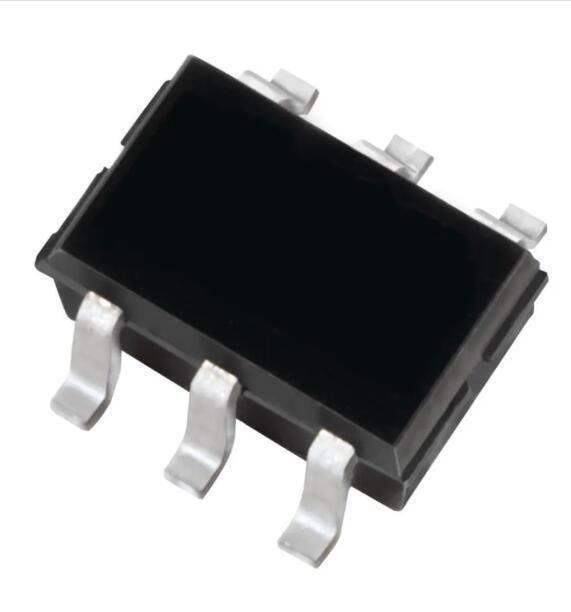

Same model may have multiple batches, images only for reference.
QPA4563ASR Qorvo
Same model may have multiple batches, images only for reference.

QPA4563ASR

Part No QPA4563ASR
Manufacturer Qorvo US Inc.
Catalog RF Amplifiers
Description RF Amplifier DC-3.5GHZ NF 2.5dB Gain 20.4dB
Datasheet
QPA4563ASR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Qorvo
Category RF Amplifier
Operating Frequency 0 Hz to 3.5 GHz
Operating Supply Voltage 3.5 V
Operating Supply Current 45 mA
Gain 19.2 dB
NF - Noise Figure 2.8 dB
Type Gain Block Amplifiers
Mounting Style SMD/SMT
Package / Case SOT-363-6
Technology SiGe
P1dB - Compression Point 15.8 dBm
OIP3 - Third Order Intercept 28.9 dBm
Ultra Librarian 3D Model Ultra Librarian QPA4563ASR CAD Model

Description

The QPA4563A is a high performance SiGe HBT MMIC amplifier. A Darlington configuration provides high FT and excellent thermal performance. The heterojunction increases breakdown voltage and minimizes leakage current between junctions. Cancellation of emitter junction non-linearities results in higher suppression of intermodulation products.
The QPA4563A may be operated from a variety of supply voltages by using a voltage dropping resistor. Two DCblocking capacitors, bypass capacitors and an optional RF choke complete the circuit required for operation of this internally matched 50 ohm device.
