Same model may have multiple batches, images only for reference.

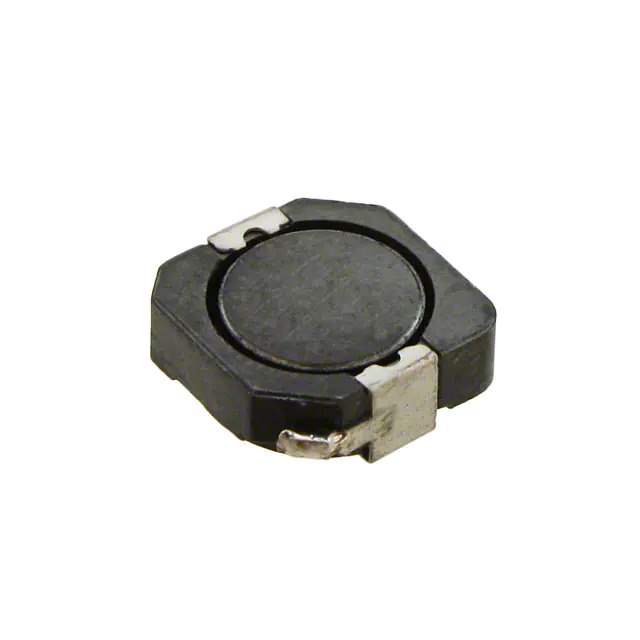

PF0560.473NLT Real Image
Same model may have multiple batches, images only for reference.

PF0560.473NLT

Part No PF0560.473NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 47UH 1.9A 128 MOHM SMD
Datasheet
PF0560.473NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Pulse
Series PF0560NL
Package Tape & Reel
Product Status Active
Type Wirewound
Inductance 47 µH
Tolerance ±25%
Current Rating (Amps) 1.9 A
Current - Saturation (Isat) 2.1A
Shielding Shielded
DC Resistance (DCR) 128mOhm Max
Frequency - Self Resonant 10MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.409" L x 0.406" W (10.40mm x 10.30mm)
Height - Seated (Max) 0.157" (4.00mm)
Standard Package 620 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 888984-PF0560.473NLT
Ultra Librarian 3D Model Ultra Librarian PF0560.473NLT CAD Model

Description

The 888984-PF0560.473NLT is a fixed inductor from the PF0560NL series.

  • Inductor Type: Wirewound
  • Inductance: 47 µH
  • Shielded: Yes
  • Packaging: Tape & Reel
  • Size: 0.409" L x 0.406" W (10.40mm x 10.30mm)
  • Height: 0.157" (4.00mm) Seated
  • Standard Package: 620 pieces
  • Tolerance: ±25%
  • DC Resistance (DCR): 128mOhm Max
  • Operating Temperature Range: -40°C to 125°C
  • ECCN: EAR99
  • REACH: Not affected
  • MSL level: 1 (unlimited)
  • HTSUS code: 8504.50.4000
  • Status: Active
  • Manufacturer: Pulse
